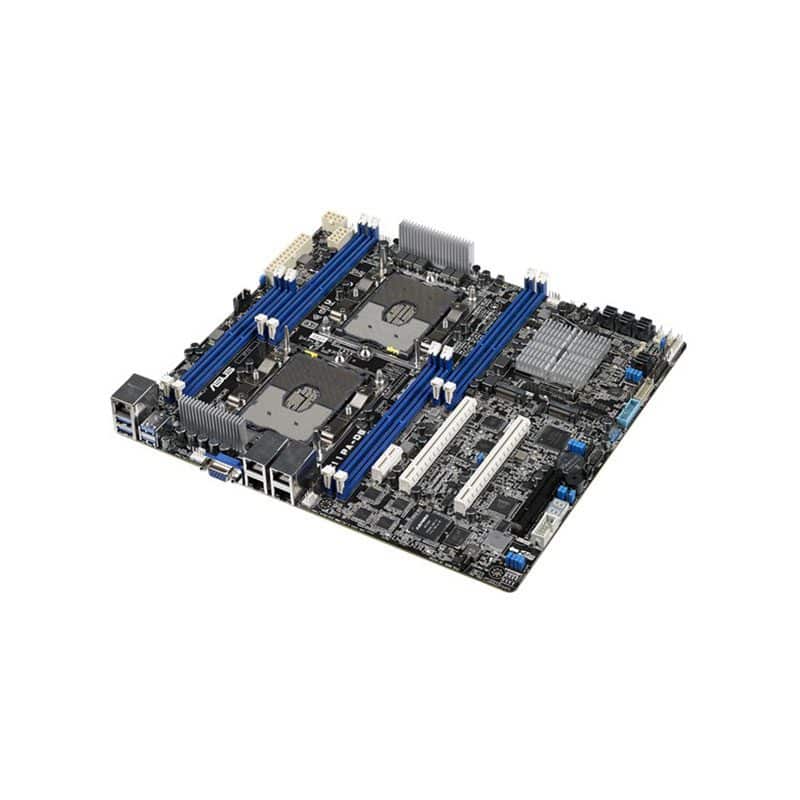

Z11PA-D8 ASUS The Asus Z11PA D8 Scalable Processor Server

Z11PA-D8 Technical Specifications

ASUS The Asus Z11PA D8 Scalable Processor Server

General Information
Product Name The Asus Z11PA-D8 Scalable Processor Server Motherboard Delivers Performance and Efficiency with
Product Model Z11PA-D8
Product Type Server Motherboard
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 4
VGA Yes
I/O Expansions
Number of Total Expansion Slots 3
Total Number of PCI Express Slots 3
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 2
Memory
Number of Memory Slots 8
Memory Form Factor LRDIMM
RDIMM
DIMM
Maximum Memory 2 TB
Memory Speed Supported 2666 MHz
2400 MHz
Memory Technology DDR4 SDRAM
Network & Communication
Gigabit Ethernet Yes
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 2
Processor Socket Socket P LGA-3647
Processor Supported Xeon
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2500
I/O Controller
Controller Type Serial ATA/600
Intel VROC Yes
Intel RSTe Yes
RAID Supported Yes
RAID Levels 10
5
1
0
Onboard Interfaces
Number of Mini-SAS Interfaces 4
Number of M.2 Interfaces 2
Total Number of Onboard USB Ports 4
Number of Onboard USB 3.0 Ports 2
Physical Characteristics
Form Factor SSI CEB
Width 12″
Depth 10.5″
