ZT-T20610B-10P Technical Specifications

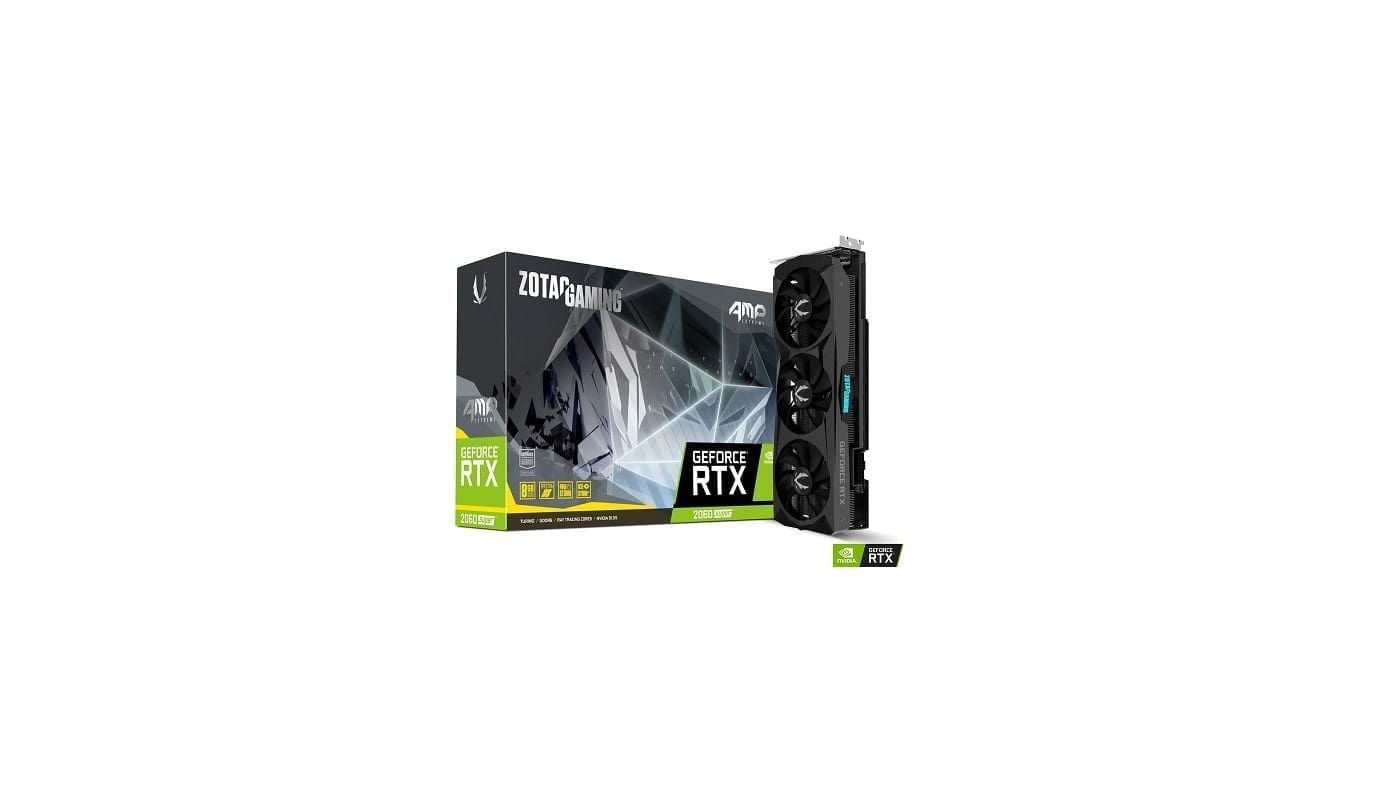

ZOTAC GAMING GeForce RTX 2060 SUPER AMP Extreme
Specifications
GPUGeForce RTX 2060 SUPER
CUDA cores2176
Video Memory8GB GDDR6
Memory Bus256-bit
Engine ClockBoost: 1710 MHz
Memory Clock14 Gbps
PCI Express3.0
Display Outputs3 x DisplayPort (4096×2160@60Hz)
HDMI 2.0 (3840×2160@60Hz)
HDCP SupportYes
Multi Display CapabilityQuad Display
Recommended Power Supply550W
Power Consumption175W
Power Input6-pin 8-pin
DirectX12 API feature level 12_1
OpenGL4.5
Cooling3 x 90mm fans
Slot Size2.5 slot
SLINo
Supported OSWindows 10 / 7 64-bit, Linux 64-bit
Card Length308mm x 113mm x 57mm (12.13in x 4.45in x 2.24in)
AccessoriesDual 6-pin to 8-pin adapter
Dual 4-pin to 6-pin adapter
User Manual
