05-26106-00 Technical Specifications

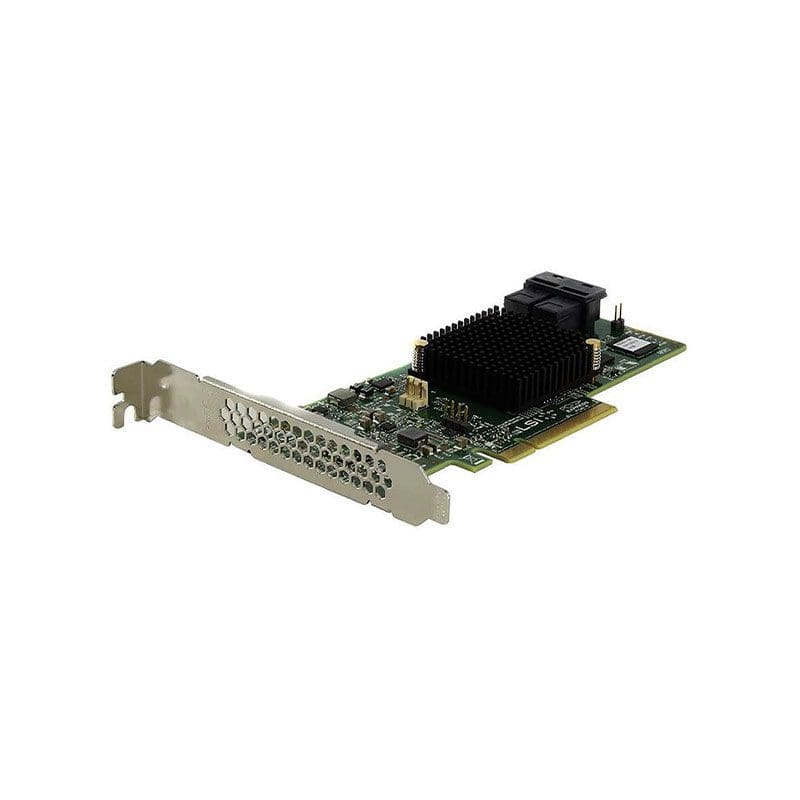

LSI Logic MegaRAID SAS 9341-8i 8-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile RAID 0/1/5/10/50/JBOD Controller Card
Manufacturer Part Number 05-26106-00
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
10
50
JBOD
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
SAS Connector Details 2 SFF-8643
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Weight (Approximate) 1.32 lb
Miscellaneous
Platform Supported PC
Linux
Environmentally Friendly Yes
Environmental Certification RoHS
