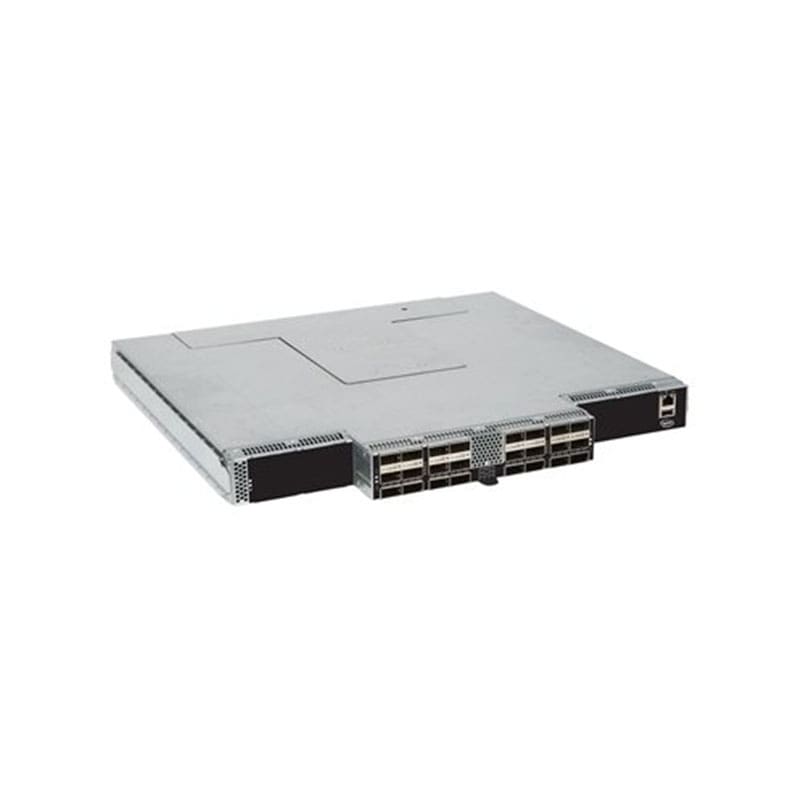

100SWE24QF2 Intel Omni-Path Edge Switch 24 ports Rack-mountable
100SWE24QF2 Overview
The next generation of high performance computing (HPC) fabrics use Intel Omni-Path Architecture to create fabrics that meet the needs of the most demanding set of applications. The Intel Omni-Path Edge Switch can be combined with other edge switches and directors to build much larger multitier fabrics. This Intel Omni-Path Edge Switch delivers an exceptional set of high-speed networking features and functions.
$7,849
100SWE24QF2 Technical Specifications
Intel Omni-Path Edge Switch 100 Series Switch 24 ports Managed Rack-mountable
Width: 17.6 in
Depth: 29.5 in
Height: 35 in
Weight: 13.67 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
General
Device Type: Switch – 24 ports – managed
Enclosure Type: Rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 24 x QSFP
Performance: Switching capacity: 4.8 Tbps ¦ Latency: 100 – 110 ns
Status Indicators: Port status, power, Internet
Expansion / Connectivity
Interfaces: 24 x 100Gbit LAN QSFP
Power
Power Device: Internal power supply – hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
Features: Front-to-rear airflow
