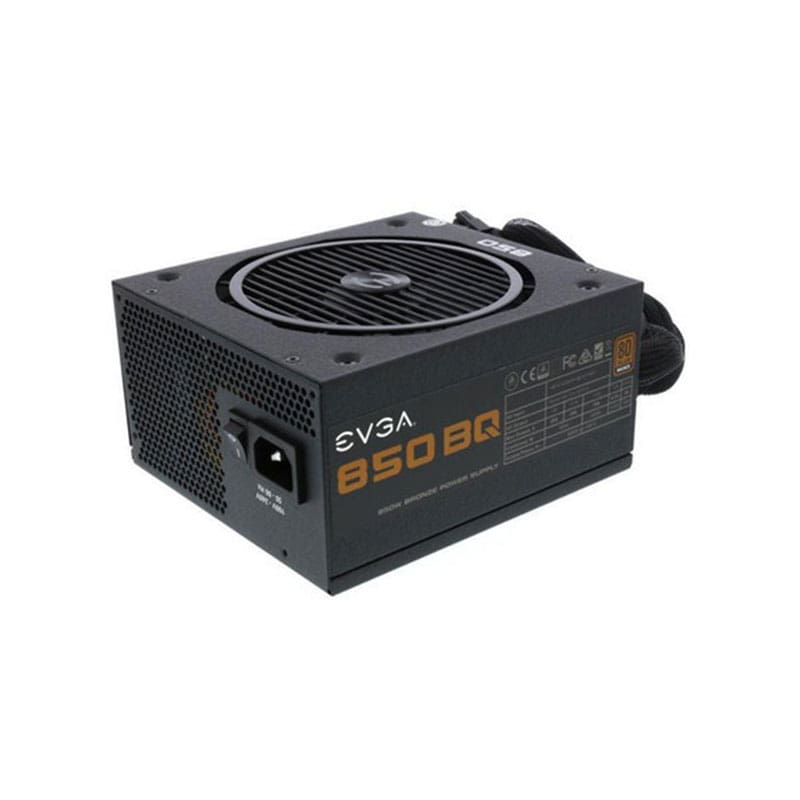

110-BQ-0850-V1 EVGA 850 Watts Power Supply

110-BQ-0850-V1 Technical Specifications

EVGA 850-Watts 100 240V 50-60Hz 80 Plus Bronze 24 Pin ATX Semi Modular Power Supply

Manufacturer: EVGA
Manufacturer Part Number: 110-BQ-0850-V1
Product Type: Power Supply
Number of +12V Rails: 1
Product Family: BQ
Modular: Yes
Specification Compliance: ATX12V/EPS12V
Form Factor: Internal
Input Voltage:
120 V AC
230 V AC
Output Power: 850 W
Output Voltage:
3.3 V DC
5 V DC
12 V DC
Number of Fans: 1
Environmentally Friendly: Yes
Output Voltage Detail:
3.3 V DC @ 24 A
5 V DC @ 20 A
12 V DC @ 70 A
12 V DC @ 300 mA
5 V DC @ 3 A
Height: 3.3″
Width: 5.9″
Depth: 6.5″
Product Series: BQ
Output Current:
24 A
20 A
70 A
300 mA
3 A
Package Type:  Retail
