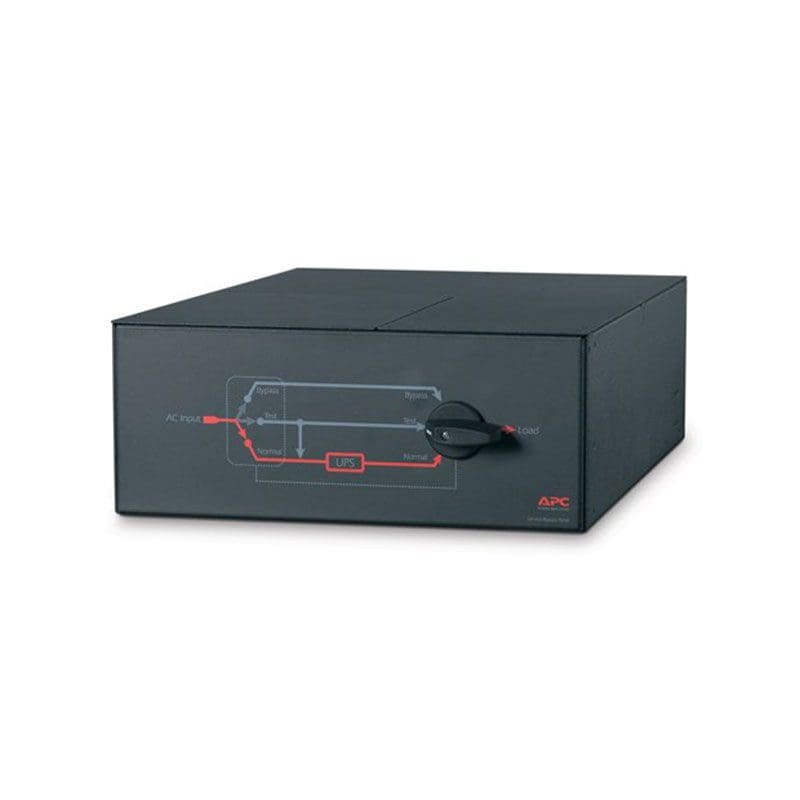

SBP10KRMT4U Technical Specifications
APC Service Bypass Panel 200/208/240V
Manufacturer Part Number SBP10KRMT4U
Product Type Bypass Panel
Product Color Black
Load Capacity 20 kVA
Height 7″
Width 17″
Depth 26.5″
Current 100 A
Receptacles 3 x NEMA L6-20R
3 x NEMA L6-30R
Plug / Connector Type Hard Wire 3-wire
Form Factor Rack-mountable
Protection Type Overload
Input Voltage 220 V AC
Limited Warranty 2 Year
Output Voltage 208 V AC
200 V AC
