PWR-C45-2800ACV= Technical Specifications

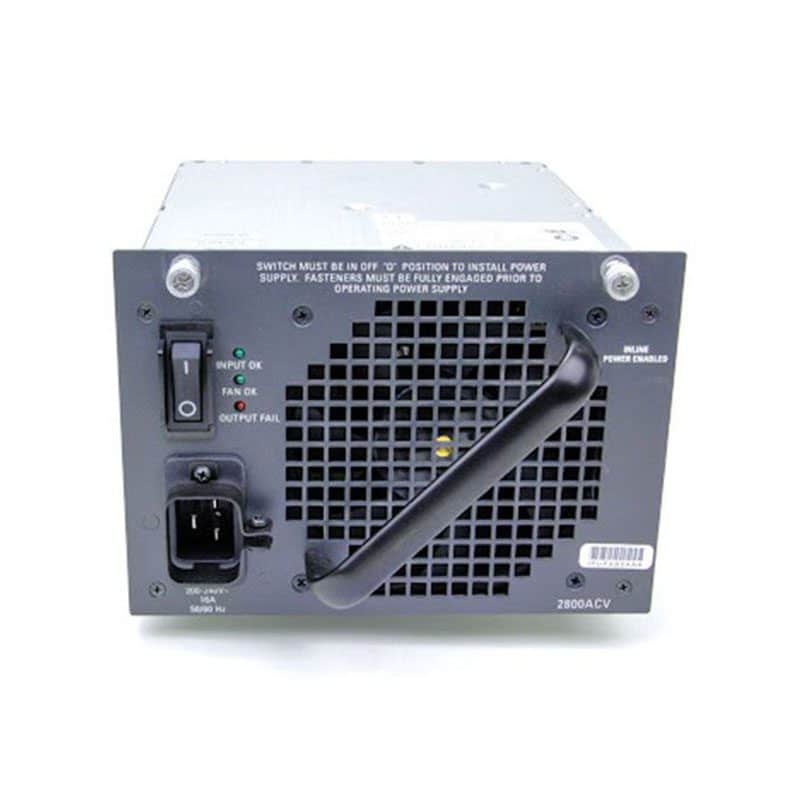

Cisco Catalyst 4500 2800 WAC Power Supply (PoE)
Model
Brand Cisco
Model PWR-C45-2800ACV=
Details
Supported Model Cisco Catalyst 4500 Series
Specifications Minimum Cisco IOS Software Release required: 12.1(12c)EW
Minimum Cisco Catalyst Operating System Software required: 7.4(1)
Integrated PoE: Yes (up to 1400W)
IEEE 802.3af compliant: Yes
Input current (rated): 16A at 200 VAC
Output current (data): 12V at 113.3A / 3.3V at 12.1A
Output current (PoE): -50V at 28A
Output power redundant mode (data): 1360W + 40W
Output power redundant mode (PoE): 1400W maximum per power supply
Output power combined mode (data): 2473W
Output power combined mode (PoE): 2333W
Heat dissipation: 2387 BTU/hr
Holdup time: 20 ms
Number of 802.3af class 2 powered devices supported: 186
Number of 802.3af classes 0 and 3 powered devices supported: 84
