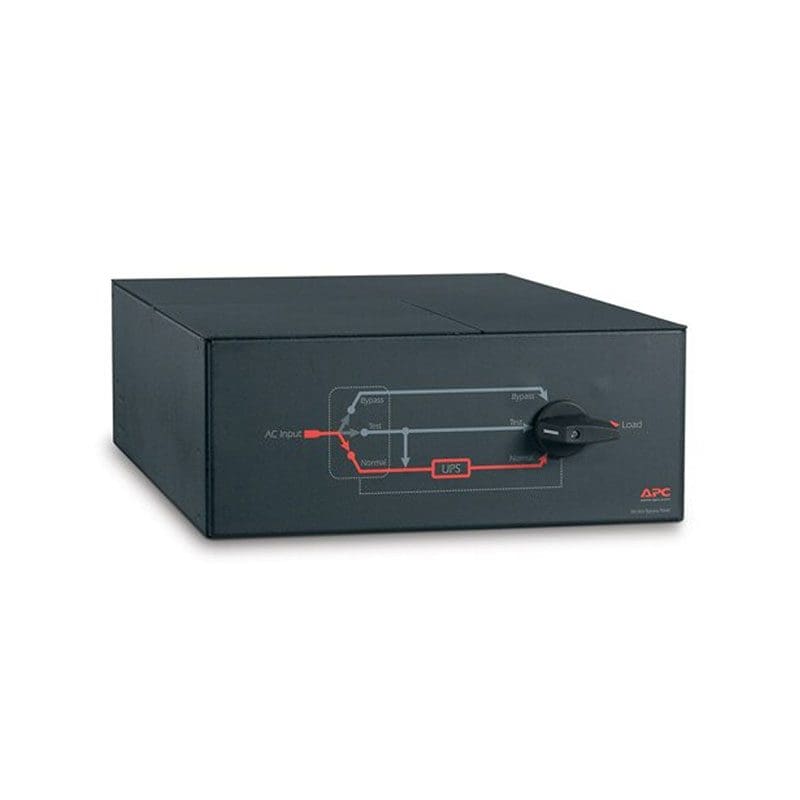

SBP16KRMP4U-HW APC Service Bypass Panel 200/208/240V

SBP16KRMP4U-HW Technical Specifications

APC Service Bypass Panel 200/208/240V

Manufacturer: Schneider Electric SA
Brand Name: APC by Schneider Electric
Product: Name19″ Rack-Mountable 100A Bypass Panel
Product Type: Bypass Switch
Product Name: Service Bypass Panel SymMetra LX 200/208/240V 4-16KVA
Product Type: Bypass Switch
Height: 7.0″
Width: 17.0″
Depth: 26.5″
Current: 100 A Total Current Draw Per Phase, 100 A Input Current Per Phase, 100 A Line Current Per Phase
Receptacles: 1 x Hard Wire 3-wire 2PH + G, 1 x Hard Wire 4-wire 2PH + N + G, 1 x NEMA L14-30R, 3 x NEMA L5-20R
Form Factor: 19″ Rack-mountable
Load Capacity: 20 kVA
Input Voltage: 220 V AC
Output Voltage: 120 V AC, 208 V AC
Plug/Connector Type: Hard Wire 3-wire 2PH + G, Hard Wire 4-wire 2PH + N + G
Input Voltage Range: 208 V AC
Frequency: 50 Hz, 60 Hz
Protection Type: Overload
