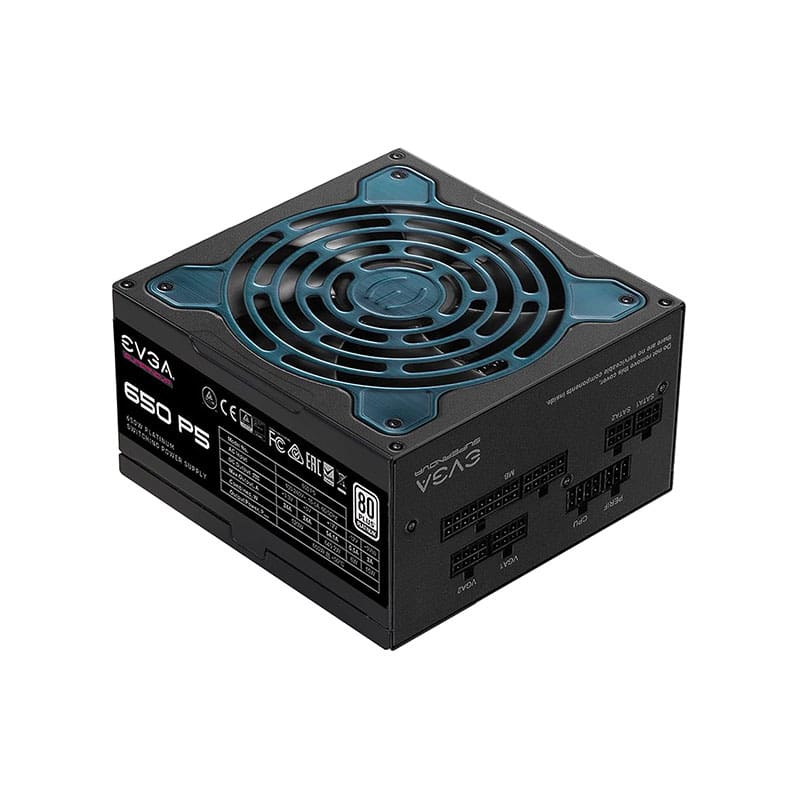

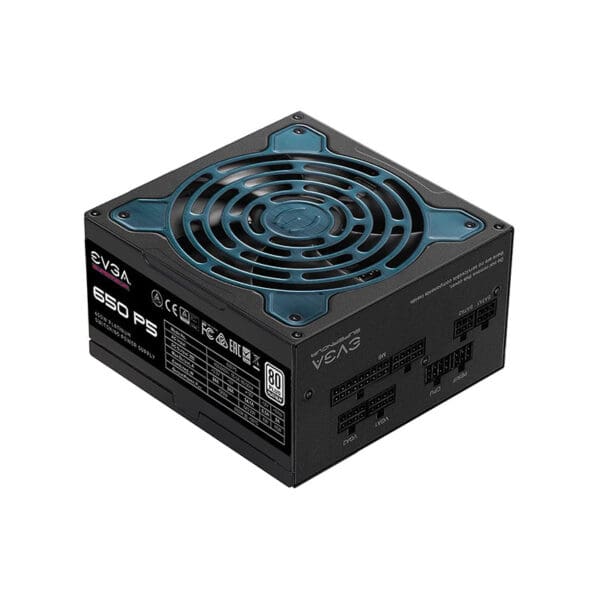

220-P5-0650-X1 EVGA SuperNOVA P5 650 Watt Power Supply

220-P5-0650-X1 Technical Specifications

EVGA SuperNOVA P5 650 Watt 120V AC 80 Plus Platinum Internal Power Supply

Product Type: Power Supply
Brand Name: EVGA
Manufacturer: EVGA Corporation
Product Model: 650 P5
Product Name: SuperNOVA 650 P5 Power Supply

Product Line: SuperNOVA
Manufacturer Part Number: 220-P5-0650-X1
Number of Fans: 1 fan(s)
ATI CrossFire Supported: Yes
NVIDIA SLI Supported: Yes
Modular: Yes
Efficiency: 94%
Number of +12V Rails: 1
Input Voltage: 120 V AC
Input Voltage: 230 V AC
Output Power: 650 W
Output Voltage: 3.3 V @ 24 A
Output Voltage: 5 V @ 24 A
Output Voltage: 12 V @ 54.1 A
Output Voltage: -12 V @ 0.5 A
Output Voltage: 5 V @ 3 A
Height: 3.4″
Width: 5.9″
Depth: 5.9″
Form Factor: Compact
Form Factor: Internal
Environmentally Friendly: Yes
Environmental Certification: 80 Plus Platinum
Environmental Certification: WEEE
Environmental Certification: RoHS
Environmental Certification: ErP Lot 3
