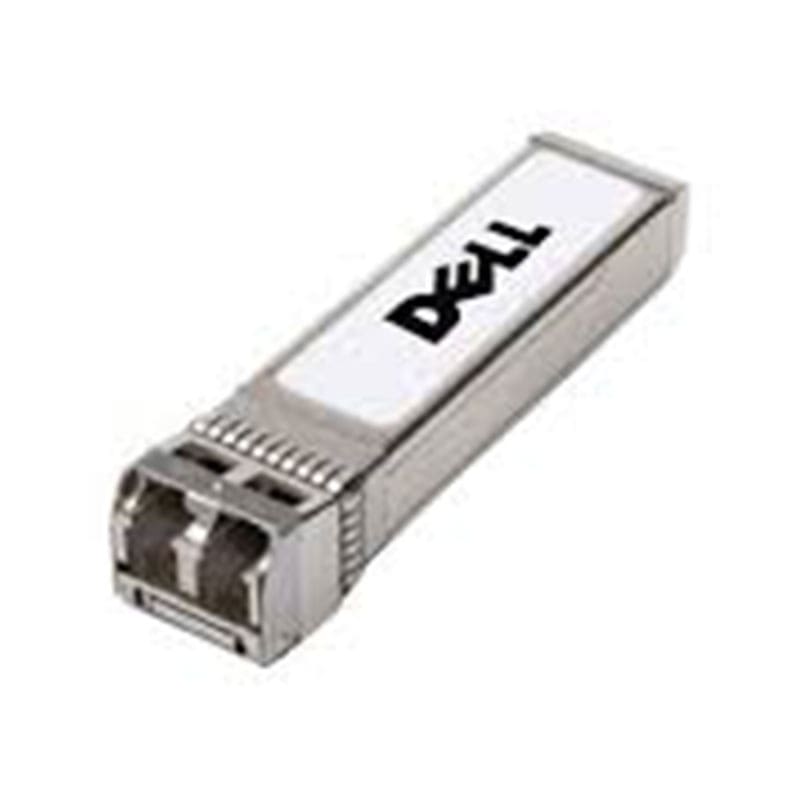

407-BBRZ Dell Sfp Transceiver Module – 1000base-sx
407-BBRZ Overview
Dell Sfp Transceiver Module – 1000base-sx The Dell SFP Transceiver Module is a plug-in module that is designed to provide high-speed connectivity for networks using multi-mode fiber. This module supports both 1000BASE-SX and 10GBASE-SR standards, and offers several features and benefits, including
407-BBRZ Technical Specifications
Dell Sfp Transceiver Module – 1000base-sx
Manufacturer: Dell
Model Number or SKU# 407-BBRZ
Product Type: Transceiver Module
Brand: Dell
Product Condition: New
Standards: SFP Multi-Source Agreement (MSA), IEEE 802.3z
Data Rate: 1 Gbps to 10 Gbps (dual-rate support for 1000BASE-SX and 10GBASE-SR)
Fiber Type: Multi-mode
Connector Type: LC Duplex
Maximum Cable Distance:
1000BASE-SX: 550m (OM2), 220m (OM1)
10GBASE-SR: 300m (OM3), 400m (OM4), 33m (OM1), 82m (OM2)
Digital Optical Monitoring (DOM) Support: Yes
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Power Consumption: 1W
Dimensions (HxWxD): 8.5mm x 13.4mm x 56.5mm
Weight: 75g
