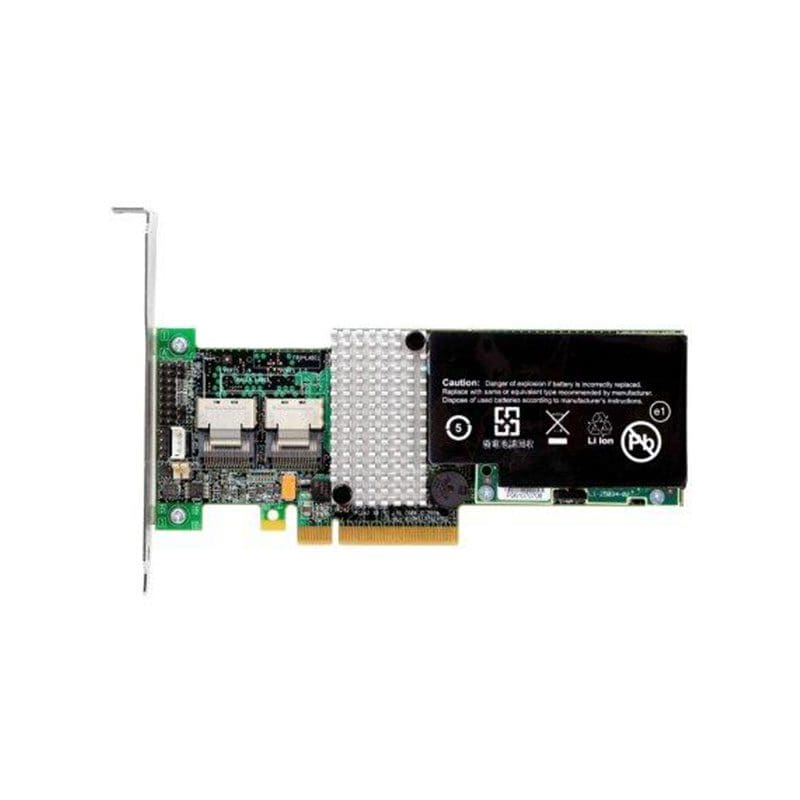

44E8825 IBM ServeRAID SAS 3Gbps / SATA 3Gbps RAID Controller Card

44E8825 Technical Specifications

IBM ServeRAID MR10M 256MB Cache SAS 3Gbps / SATA 3Gbps PCI Express x8 RAID Controller Card with Remote Battery Kit

Manufacturer Part Number 44E8825
Brand Name IBM
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
RAID Supported Yes
RAID Levels 0
1
10
5
50
6
60
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
Number of SAS Ports (External) 2
SAS Connector Details 2 SFF-8088
Physical Characteristics
Height 2.7″
Width 6.7″
Thickness 0.7″
Form Factor Plug-in Card
Weight (Approximate) 6 oz
Miscellaneous
Platform Supported PC
