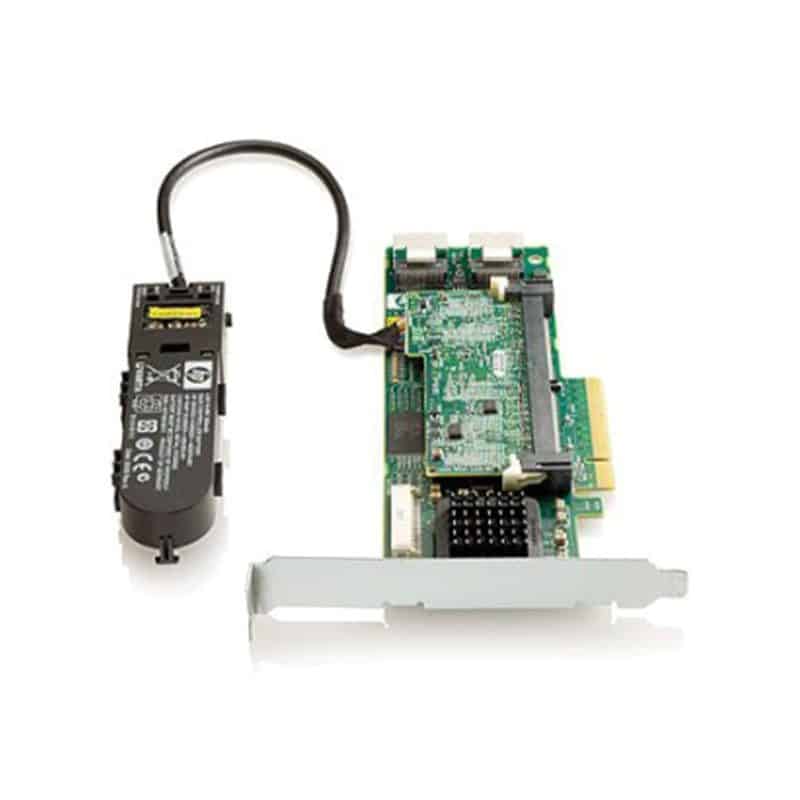

462864R-B21 HP Smart Array SCSI (SAS) RAID Storage Controller Card

462864R-B21 Technical Specifications

HP Smart Array P410 PCI-Express x8 Serial Attached SCSI (SAS) 300Mbps Low Profile RAID Storage Controller Card 512MB BBWC (Battery Backed Write Cache)

Manufacturer Part Number 462864R-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x8
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
1+0
5
5+0
6
60
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8484
Physical Characteristics
Height 7.5″
Width 9.5″
Thickness 2.3″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification WEEE
