5812-54T-O-AC-B-US Edge-Core AS5812-54T Switch 54 ports Rack-mountable
5812-54T-O-AC-B-US Overview

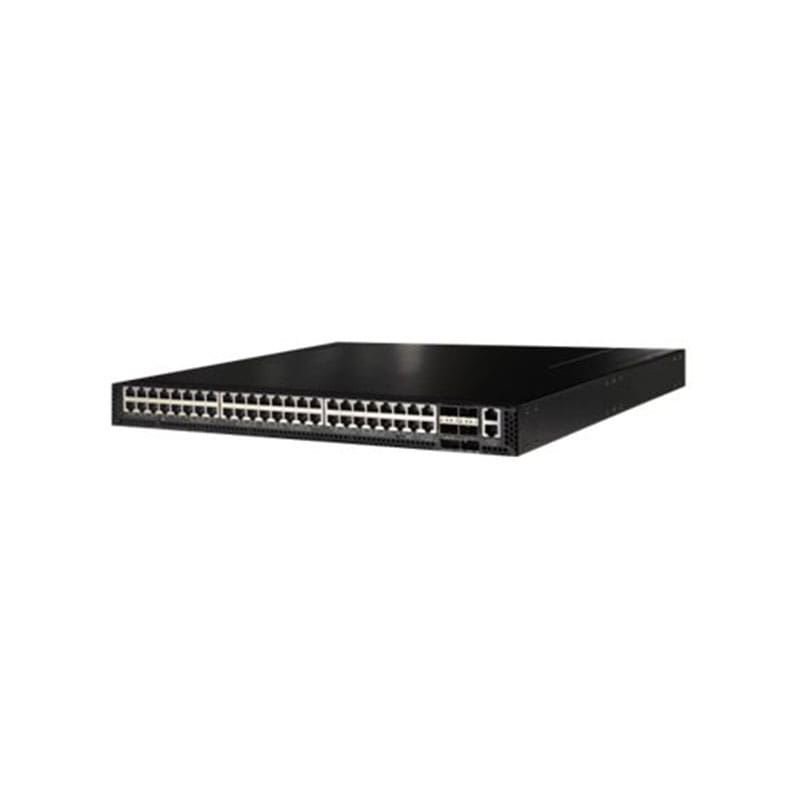

The Edgecore AS5812-54T switch meets the high-performance, availability and network-scaling requirements of enterprise and cloud data centers. The AS5812-54T provides full line-rate switching at Layer 2 or Layer 3 across 48 x 10GbE ports and 6 x 40GbE uplinks. The switch can be deployed either as a Top-of-Rack switch, or as part of a 10GbE or 40GbE distributed spine,
$7,545
5812-54T-O-AC-B-US Technical Specifications
Edge-Core AS5812-54T Switch 54 ports Managed Rack-mountable
Device Type: Switch – 54 ports – L3 – managed
Enclosure Type: Back to front airflow desktop, rack-mountable
Subtype”: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit Ethernet + 6 x 40 Gigabit QSFP
Capacity: VLAN IDs: 4000
MAC Address Table Size: 320K entries
Jumbo Frame Support: 9216 bytes
Processor: 1 x Intel Atom C2538: 2.4 GHz
RAM: 8 GB DDR3 SDRAM
Flash Memory: 8 GB
Expansion / Connectivity
Power
Power Device: Internal power supply – hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Miscellaneous: Included Accessories
Grounding kit
Cables Included: 1 x console cable
Rack Mounting Kit: Included
Localization: North America
Software / System Requirements
Dimensions & Weight
Width: 18.6 in
Depth: 17.4 in
Height: 1.7 in
Weight: 18.74 lbs
