642107-001 Technical Specifications

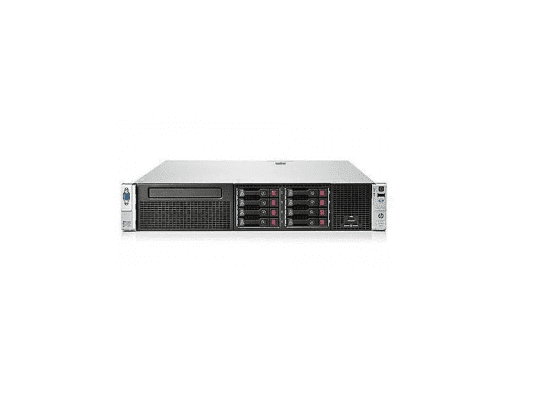

HP Proliant DL380P G8 Base Model 1X Xeon Hexa-Core E5-2640/ 2.5GHz, 16GB DDR3 SDRAM, Smart Array P420I With 1GB FBWC, 1GB 4-Port 331FLR Adapter, 1X 460W PS, 2-Way 2U Rack Server.
PRODUCT DETAILS:
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 642107-001
Product Name: Proliant DL380p G8 – 2-Way 2U Rack Mount (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2640 / 2.50 GHz
Multi-Core Technology: Hexa-Core (6 Core)
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Model: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 15 MB
Cache Per Processor: 15 MB
MEMORY:
Installed Size: 16 GB / 768 GB (MAX)
Technology: DDR3 SDRAM
Memory Speed: 1333 MHz
Memory Specifications Compliance: PC3-10600
Form Factor: Dimm 240-Pin
Features: Registered, Quad Channel Memory Architecture, Low-Voltage, HP Smartmemory
Configuration Features: 4 X 4 GB
RAM SUPPORTED :
Pc3-12800 – 384 GB – Registered
Pc3-10600 – 768 GB – Low Voltage – Load-Reduced
Pc3-12800 – 128 GB – Unbuffered – Advanced ECC
Pc3-10600 – 384 GB – Hypercloud
STORAGE & STORAGE CONTROLLERS:
Hard Drive: None
Optical Drive Type: None
Type : Card Reader
Supported Flash Memory Cards : SD Memory Card
Storage Controller Type: 1 X Raid – Integrated – PCI Express 3.0 X8
Controller Interface Type: SATA-600 / SAS 2.0
Storage Controller Name: Smart Array P40i With 1GB FBWC
Raid Level: Raid 0 Raid 1 Raid 5 Raid 10 Raid 50
Buffer Size: 1 GB
DISPLAY & GRAPHICS:
Graphics Type: Integrated
Graphics Controller Model: Matrox G200
Video Interfaces : VGA
NETWORK & COMMUNICATION:
Interface (Bus) Type : PCI Express X4
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): HP 331FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (Wol), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AD .
