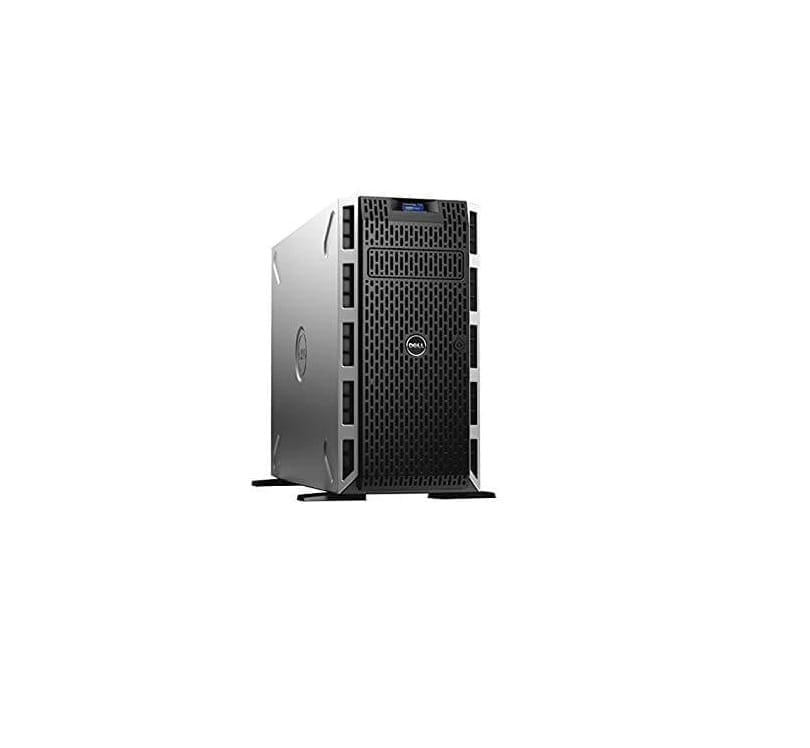

PFD2M Dell EMC PowerEdge T440 – Tower

PFD2M Technical Specifications

Dell EMC PowerEdge T440 – Tower

Header
Manufacturer :Dell Server Solutions
Brand :Dell EMC
Product Line :Dell EMC PowerEdge
Model :T440
Packaged Quantity :1
System
Type :Server
Hard Drive Capacity :1 TB
Chassis
Form Factor :Tower
Manufacturer Form Factor :Tower
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SAS
Hot Swap Bays Qty :8 Bays
Built-in Devices :Status LCD
Processor
Type :Xeon Silver
Number of Cores :8-core
Processor Number :4110
Installed Qty :2
Max Supported Qty :2
Server Scalability :2-way
Upgradability :Upgradable
Manufacturer :Intel Xeon
Clock Speed :2.1 GHZ
Max Turbo Speed :3 GHZ
Processor Main Features :Intel Turbo Boost Technology 2
Cache Memory
Per Processor Size :11 megabyte
Installed Size :22 megabyte
RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :32GB
Configuration Features :2 x 16 GB
Slots Qty :16 DDR4 Slots
Empty Slots :14
Memory Speed :2400 megahertz
Rated Memory Speed :2400 megahertz
Storage Controller
Type :RAID
Storage Controller Name :Dell PERC H730P
Installed Qty :1
Hard Drive
Type :HDD
Removable :Hot-swap
Interface Class :Serial SATA
Installed Qty :1
Capacity :1 TB
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Hard Drive (4th)
Type :None
Optical Storage (2nd)
Drive Type :No optical drive
Type :None
Storage Removable
Type :None
Display
Type :None.
Video Output
Graphics Processor :Matrox G200eR2
Graphics Processor Series :Matrox G200
Video Interfaces :VGA
Video Memory
Installed Size :16 megabyte
Audio Input
Type :None
Printer
Type :None
Networking
Remote Management Controller :Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9)
Interface (Bus) Type :LAN-on-motherboard (LOM)
Data Link Protocol :Fast Ethernet, Gigabit Ethernet, Ethernet
Ethernet Ports :2 x Gigabit Ethernet
Expansion Bays
Bays :8 (total) / 7 (free) x hot-swap 3.5″
Expansion Slots
Slots :2 PCIe 3.0 x8 – half-length, full-height, 2 PCIe 3.0 x4 – half-length, full-height, 1 PCIe 3.0 x16 – full-length, full-height
Interface Provided
Interfaces :2 x LAN (Gigabit Ethernet), 3 x USB 3.0 – Type A (1 front, 2 rear), 1 x VGA (1 rear), 1 x serial, 5 x USB 2.0 – Type A (1 front, 4 rear), 1 x management (NIC)
OS Provided
Type :No operating system
Power Device
Type :Power supply – hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :1
Max Supported Qty :2
Power Provided :495 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Black
Height (Rack Units) :5
Dimensions & Weight
Width :21.8 centimetre
Depth :57.3636 centimetre
Height :47.1333 centimetre
Weight :29.5 keg
