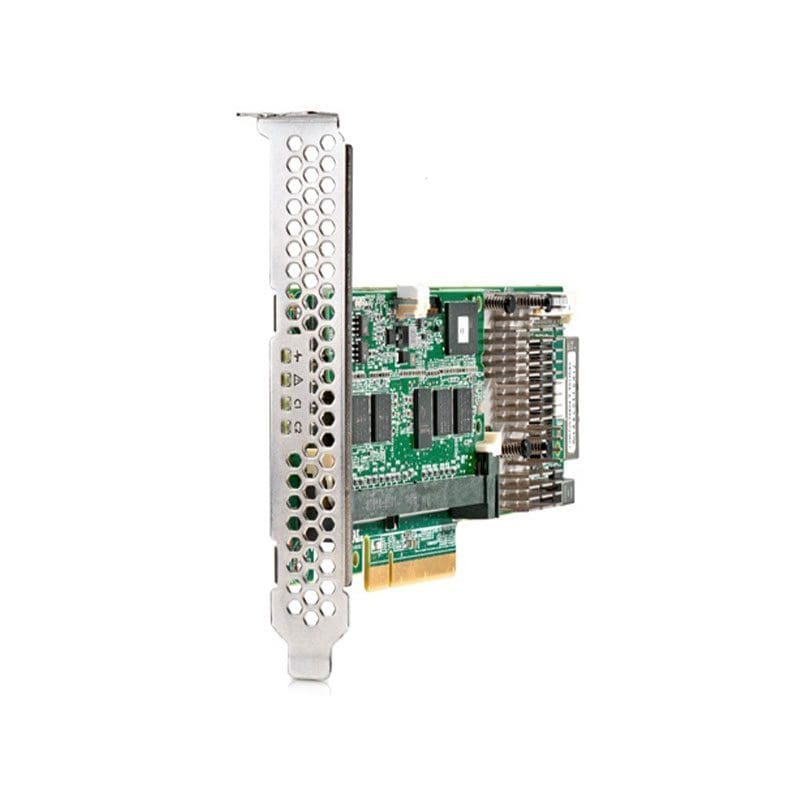

726823-001 HP Smart Array P440 12gb Single Port Sas Raid Controller

726823-001 Thechnical Specifications

HP Smart Array P440 12gb Single Port (int) Pci-e 3.0 X8 Sas Raid Controller

Brand: HPE
MPN : 726823-001
Type: Controller
Sub- Type: SAS Controller
SKU : 726823-001
Technical Specifications:
Device Type : Storage Controller (raid) – Plug-in Card – Low Profile
Host Bus : PCIE 3.0 X8
Transfer Rate : 12GB/s SAS Per Physical Link, 6gb/s Sata Per Physical Link, • • Pci Express Gen3 X8 Link Width
Form Factor : Standard Pcie Plug-in Card
Ports : Internal: 8 Physical Links Across 1 X8 Ports
Cache : 4gb Flash-backed Write Cache
Raid Levels : 0, 1, 10, 5, 50, 6, 60, 10 Adm
