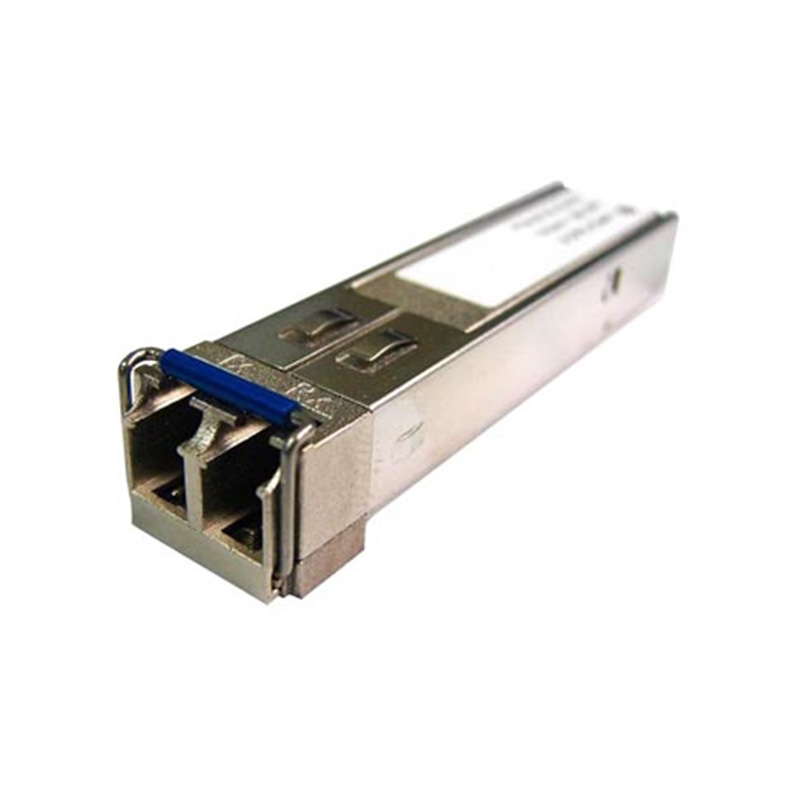

740-052009 Juniper 40Gb/s 40GBase-L Optical Transceiver
740-052009 Overview
The Juniper 740-052009 40GBase-LR4 QSFP+ transceiver module is engineered for long-distance 40Gbps connectivity over single-mode fiber. Supporting up to 10km reach using CWDM technology across four lanes at 1310nm, this module consolidates high-bandwidth links into a compact QSFP+ footprint. The duplex LC interface provides straightforward integration into existing SMF infrastructures. Ideal for data centers, core networks, and high-capacity enterprise environments, it ensures efficient aggregation, backbone connectivity, and inter-switch communication. Its hot-swappable design allows simplified installation and replacement without service disruption, making it a dependable choice for scaling 40GbE deployments.
740-052009 Technical Specifications
Juniper 40Gb/s 40GBase-LR4 Single Mode Fiber 10km Duplex LC QSFP+ Optical Transceiver
Manufacturer: HPE
Manufacture Part Number: 740-052009
Data Rate: 40Gbps
Standard: 40GBase-LR4
Fiber Type: Single-Mode Fiber (SMF)
Wavelength: 1310nm (4x10Gbps CWDM lanes)
Maximum Distance: Up to 10km
Connector Type: Duplex LC
Form Factor: QSFP+ (Quad Small Form-Factor Pluggable Plus)
Transmission Method: 4 channels multiplexed over single-mode fiber
Protocol Support: 40 Gigabit Ethernet (IEEE 802.3ba), OTN OTU3 compatible
Hot-Pluggable: Yes
Compliance: MSA compliant, RoHS compliant
