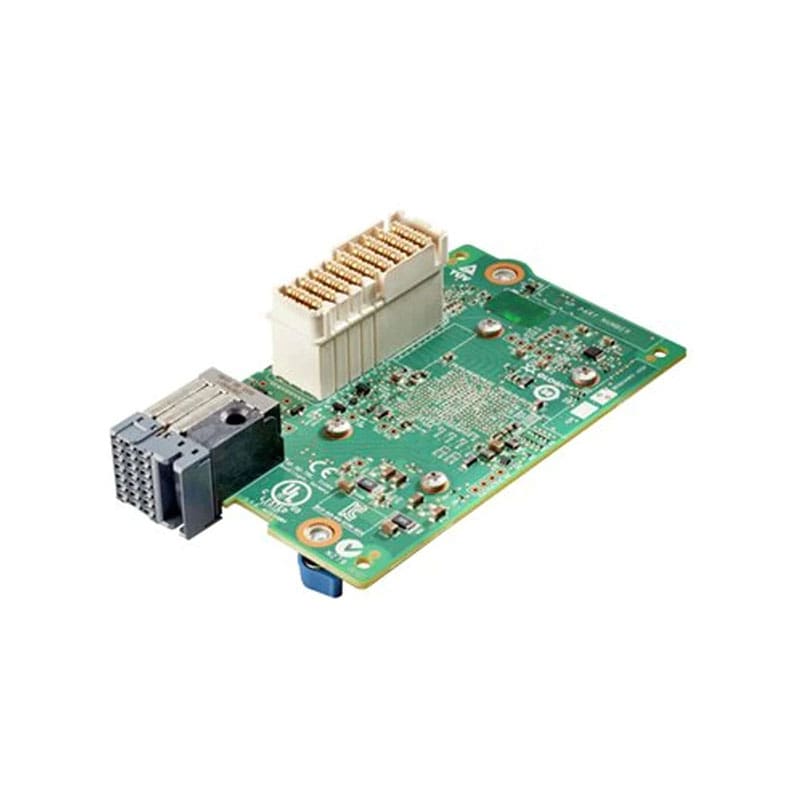

777454-B21 HPE Synergy 3530C Host Bus Adapter PCIe 3.0 x16 Mezzanine 16Gb Fibre
777454-B21 Overview
HPE Synergy 3530C 16Gb Fibre Channel Host Bus Adapter connects Synergy compute resource pools to SANs over 16 Gb native Fibre Channel (FC) fabrics. It provides high-performance connectivity to HPE Synergy Virtual Connect FC Modules and Brocade FC Switch Modules. The Synergy 3530C supports advanced virtualization, security, dual-port isolation, dynamic power management and low CPU utilization features. Doubling the I/O performance of 8 Gb FC HBAs, the Synergy 3530C is ideal for FC storage intense workloads.
$1,488
777454-B21 Technical Specifications
HPE Synergy 3530C Host Bus Adapter PCIe 3.0 x16 Mezzanine 16Gb Fibre
Brand: HPE
Manufacture Part Number: 777454-B21
Product Line: HPE Synergy
Model: 3530C
Manufacturer: Hewlett-Packard
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 16Gb Fibre Channel
Data Transfer Rate: 16 GBps
Features: Transparent (N_Port ID Virtualization – NPIV) mode support
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x16 Mezzanine
Product Type: Host bus adapter
Connectivity
Interface Provided: 2 x 16Gb Fibre Channel
Port Quantity: 2
Network & Adapter Ports: 16Gb Fibre Channel
Power
Power Consumption Operational: 13 watt
Software
Technical Information
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
Product Information
Capacity: Concurrent logins: 8192
Packaged Quantity: 1
Dimensions & Weight
Height: 3.5 inch
Width: 3.5 inch
Certifications & Listings
Compliant Standards: RoHS, WEEE
