7X06A0B1EA Technical Specification

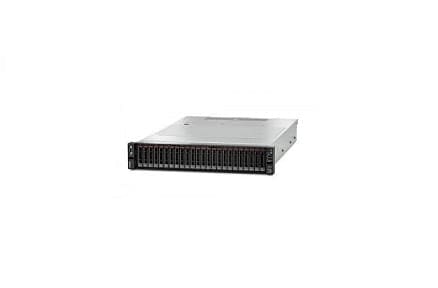

Lenovo ThinkSystem SR650 Server
Processor frequency: 2.8 GHz
Processor family: ntel Xeon Gold
Processor model: 6242
Processor cores: 16
Number of processors installed: 1
Processor cache: 22 MB
Embedded options available: N
Execute Disable Bit: Y
Maximum internal memory supported by processor: 1024 GB
Maximum number of PCI Express lanes: 48
Memory clock speeds supported by processor: 2933 MHz
Memory types supported by processor: DDR4-SDRAM
Processor boost frequency: 3.9 GHz
Processor codename: Cascade Lake
Processor lithography: 14 nm
Processor manufacturer: Intel
Processor operating modes: 64-bit
Processor package size: 76.0 x 56.5 mm
Processor socket: LGA 3647 (Socket P)
Processor threads: 32
Scalability: 4S
Supported instruction sets: AVX-512
Tcase: 85 °C
Thermal Design Power (TDP): 150 W
Memory
Internal memory: 16 GB
ECC: Y
