881227-001 HP 32 Ports 100GbE Fibre Channel Switch Power to Connector Airflow 32QSFP28
881227-001 Overview

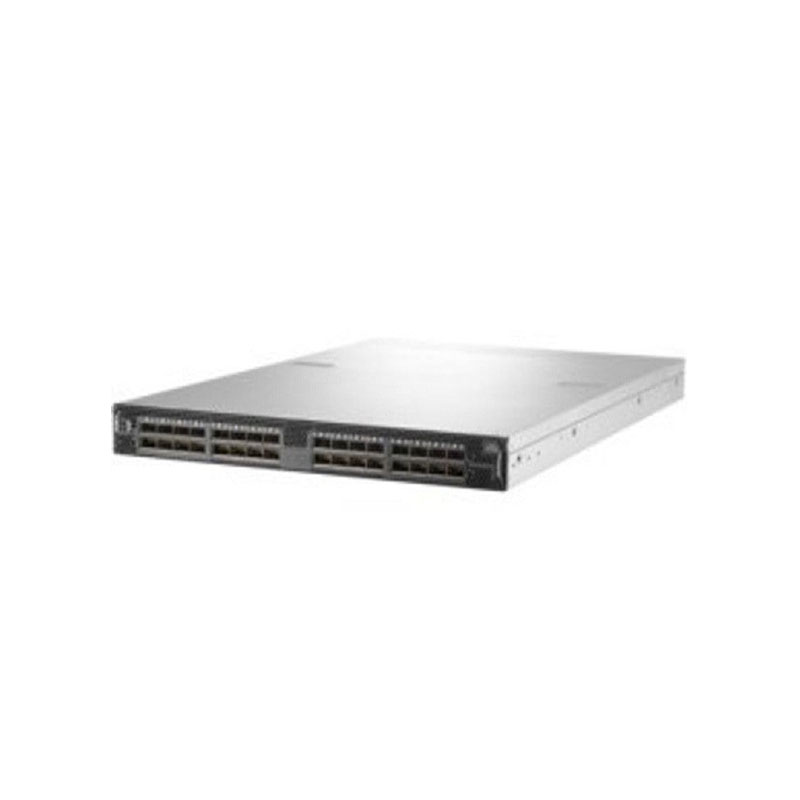

The HP 881227-001 32-Port 100GbE Fibre Channel Switch is a high-performance, enterprise-grade SAN switch designed for data centers and storage area networks requiring ultra-high-speed connectivity. It features 32 QSFP28 ports, each capable of 100GbE throughput, delivering extremely high bandwidth for server uplinks, storage arrays, and inter-switch links in dense, high-performance environments.This switch is optimized for low-latency, high-throughput SAN traffic, making it ideal for virtualization, large-scale storage, high-performance computing (HPC) clusters, and mission-critical workloads that demand reliable and fast data transfer. Its QSFP28 ports enable high-density 100GbE connectivity, supporting both short- and long-distance optical links depending on the transceivers used.
881227-001 Technical Specifications
HP 32 Ports 100GbE Fibre Channel Switch Power to Connector Airflow 32QSFP28
Manufacturer Part Number: 881227-001
Brand Name: HP
Product Type: 100GbE Fibre Channel Switch
Form Factor: 1U Rack-mountable
Number of Ports: 32 Active
Port Type: QSFP28
Port Speed: 100Gbps per port
Expansion Slots: 32 x QSFP28
Aggregate Bandwidth: 3.2Tbps full duplex
Management: Managed via Web Tools, CLI, SNMP
Advanced Features: VLAN, LACP, QoS, Layer 2/3 Support
Security: Role-Based Access Control
Scalability: Stackable via QSFP uplinks
Hot-Swappable Components: Yes
Redundant Power Supplies: Supported
Cooling: Front-to-Back Airflow, Integrated Fans
Power Consumption: Energy Efficient
Environmentally Friendly: Yes
Environmental Certification: RoHS Compliant
Operating Temperature: 0°C to 45°C
Operating Humidity: 10% to 90% Non-Condensing
Weight: Approx 30 lbs (13.6 kg)
Dimensions: 1.7 x 17.3 x 20 in (H x W x D)
