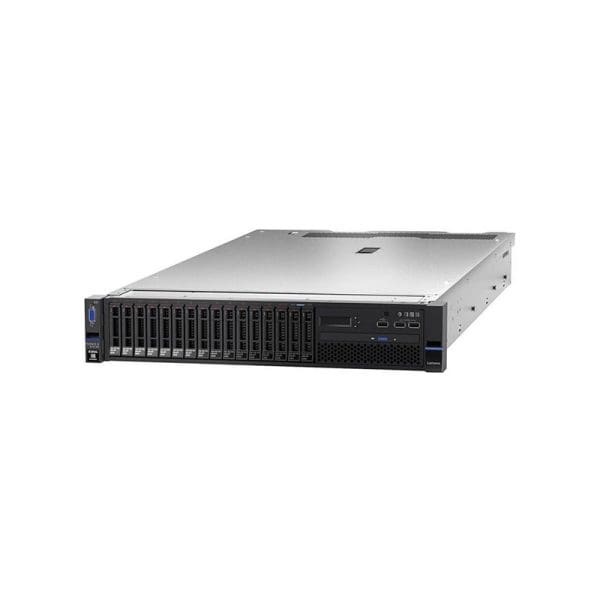

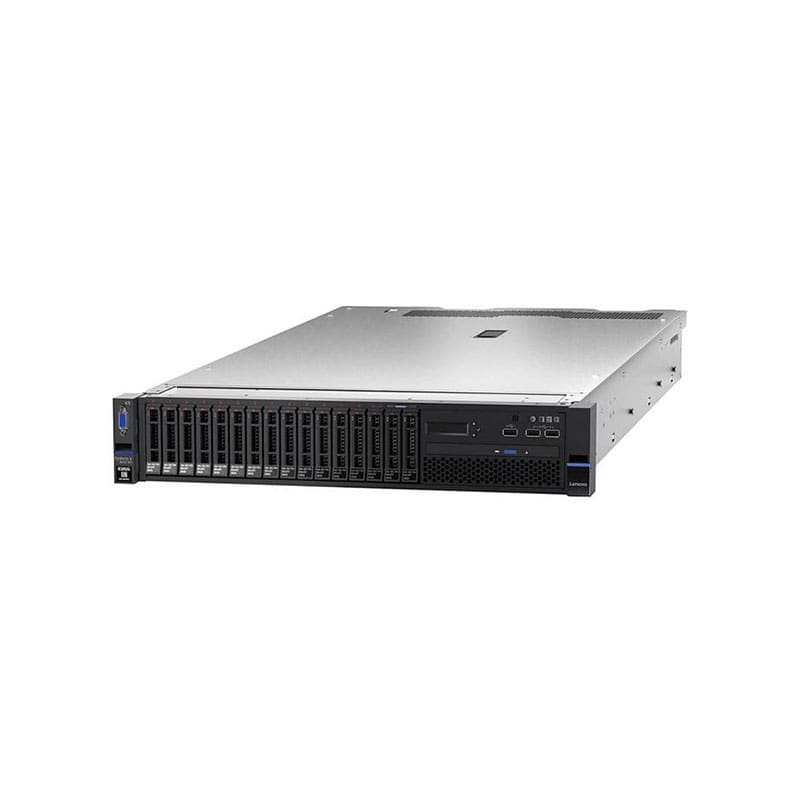

8871KWU Technical Specifications
Lenovo System X3550 x/2.6 14C 35MB 2400MHZ
General Information
Product Name System X3550 x/2.6 14C 35MB 2400MHZ 135W
Product Line System x
Product Series x3650 M5
Product Model 8871KWU
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200eR2
Graphics Memory Capacity Up to 16 MB
Memory
Standard Memory 128 GB
Maximum Memory 768 GB
Memory Technology TruDDR4
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 900 W
Storage
Total Solid State Drive Capacity 480 GB
Solid State Drive Configuration 2 x 240 GB
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2690 v4
Processor Core Tetradeca-core (14 Core)
Processor Speed 2.60 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 3.4″
Width 17.1″
Depth 29.7″
