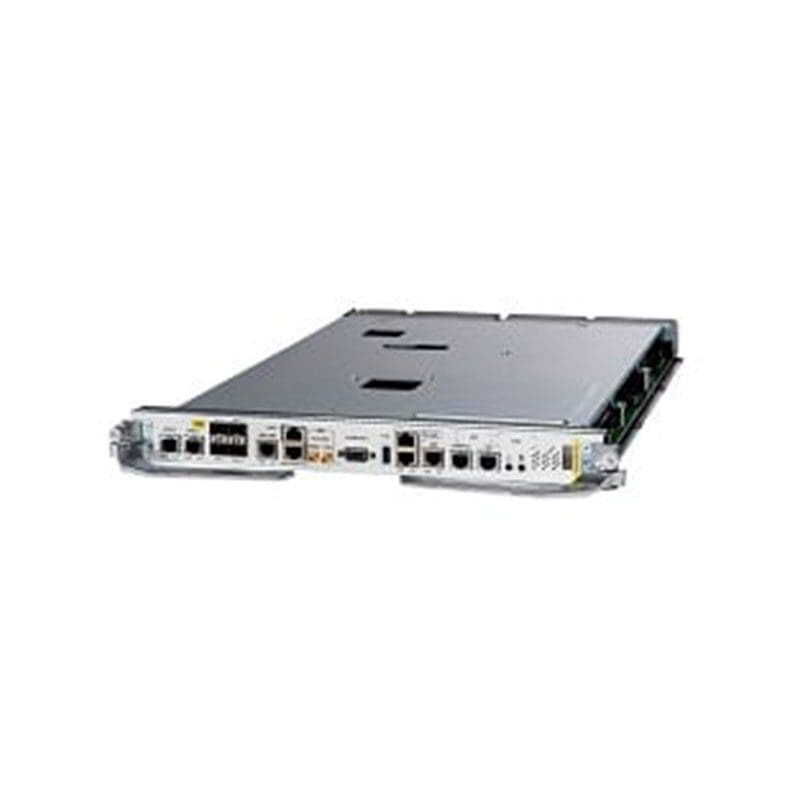

Refurbished A99-RSP-TR Technical Specification
Cisco Route Switch Processor
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Route Switch Processor
Model :for Packet Transport
Packaged Quantity :1
Processor
Clock Speed :1.9 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :32 GB
Performance
Performance :Switching capacity: 12 Tbps
Networking
Type :Control processor
Form Factor :Plug-in module
Connectivity Technology :Wired
Routing Protocol :Bidirectional Forwarding Detection (BFD)
Status Indicators :Status
Features :Non-Stop Routing (NSR), Precision Time Protocol (PTP), Virtual Routing and Forwarding (VRF)
Compliant Standards :IEEE 1588-2008
Interface Provided
Interfaces :1 x 100Base-TX – RJ-45, 1 x auxiliary – RJ-45, 1 x console – RJ-45, 1 x GPS in/out – RF, 1 x RS-232/422, 1 x RS-422 – RF, 1 x USB 2.0 – Type A, 2 x 1000Base-T (management) – RJ-45
Miscellaneous
Color Category :Gray
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, EN 300 386, EN 50121-4, EN 55022/CISPR 22 Class A, EN 61000-3-2, EN 61000-6-1, EN50082-1, EN55022, EN55024, ETSI 300 019-1-1, ETSI 300 019-2-3, ETSI 300 019-3-1, FCC Class A certified, FDA, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 61000-3-2, IEC/EN 60825, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/UL/CSA/EN 60950-1, SR-3580 NEBS Level 3, VCCI Class A
Dimensions & Weight
Width :15.9 inch
Depth :24.6 inch
Height :1.7 inch
Weight :17.84 lbs
