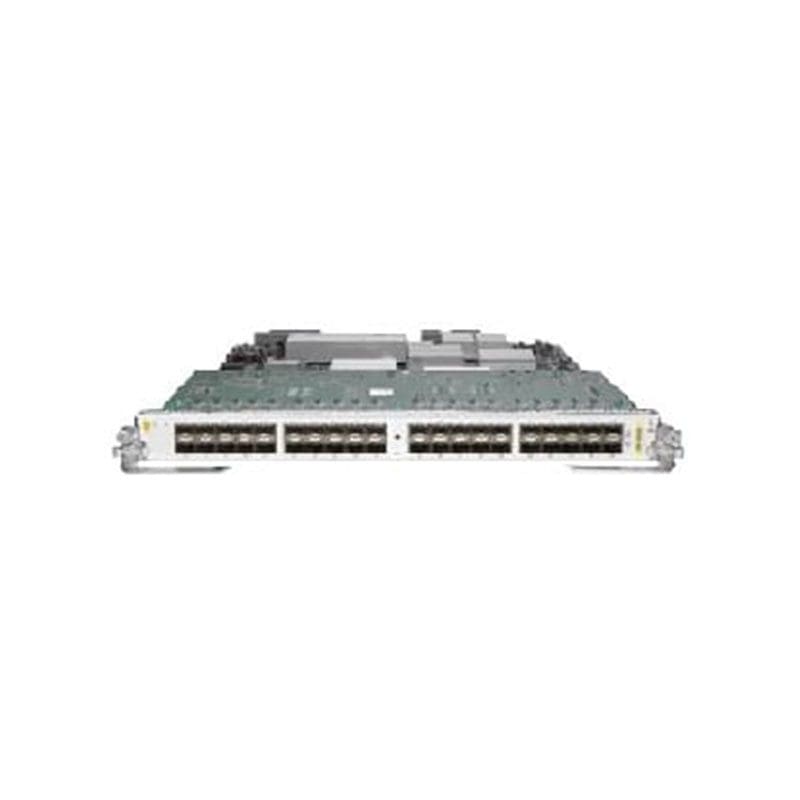

Refurbished A9K-40GE-TR Technical Specification
Cisco 40-Port GE Packet Transport
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Remote Management Protocol SNMP
Features Flow control, layer 3 switching, layer 2 switching, VPN support, MPLS support, Quality of Service (QoS), NetFlow
Compliant Standards IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731
Expansion / Connectivity
Expansion Slots 40 (total) / 40 (free) x SFP
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, ETSI 300 019, CSA 22.2 No. 60950-1, EN 300386
Dimensions & Weight
Width 1.7 in
Depth 20.5 in
Height 14 in
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Compatibility Information
Designed For Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
