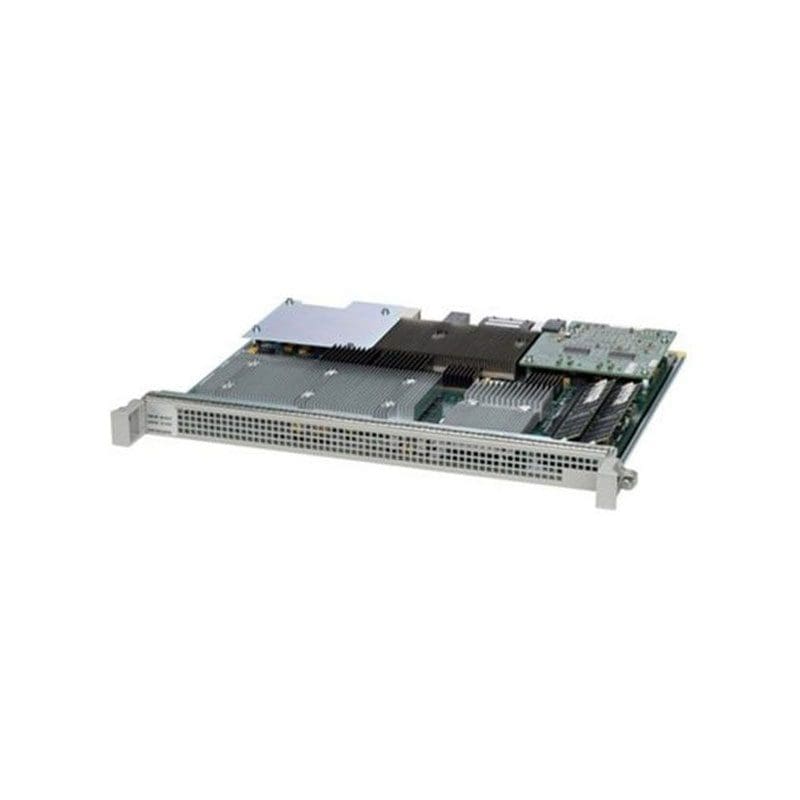

ASR1000-ESP40, Cisco ASR 1000 Processo

ASR1000-ESP40 Overview

The Cisco forwarding performance will vary depending on features configured. Up to 4 Mpps for the combination of the following commonly-used features: IPv4 forwarding, IP Multicast, ACL, QoS, Reverse Path Forwarding (RPF), load balancing, and Sampled Net Flow.

$38,999

Buy Now
Availability: In Stock
SKU:asr1000-esp40
Brand:

ASR1000-ESP40 Technical Specifications

Cisco ASR 1000 Processor

Access control
Product Line Cisco ASR
Product Series Cisco ASR 1000
Product Model ASR1000
Product Type Control Processor
Up to 4,000 unique ACLs and 100,000 ACEs per system
Broadband
Up to 64,000 sessions and 16,000 L2TP tunnels
IP Up to: 4,000,000 IPv4 or 4,000,000 IPv6 routes
Multicast: 100,000 routes and 4,000 groups
QoS Flexible number of queues per system:
Up to 128,000 queues
Three levels of hierarchy
Two LLQ queues per policy, with up to 4,000 policies
8-kbps policing and queuing granularity
<100-microsecond latency for high-priority applications
Real-time traffic
Up to 4,000 CRTP sessions
Security
Up to: ● IPsec: 8,000 tunnels
Firewall or NAT: 2,000,000 sessions and 200,000 sessions-per-sec setup rate
Carrier-Grade NAT: 4,000,000 sessions
