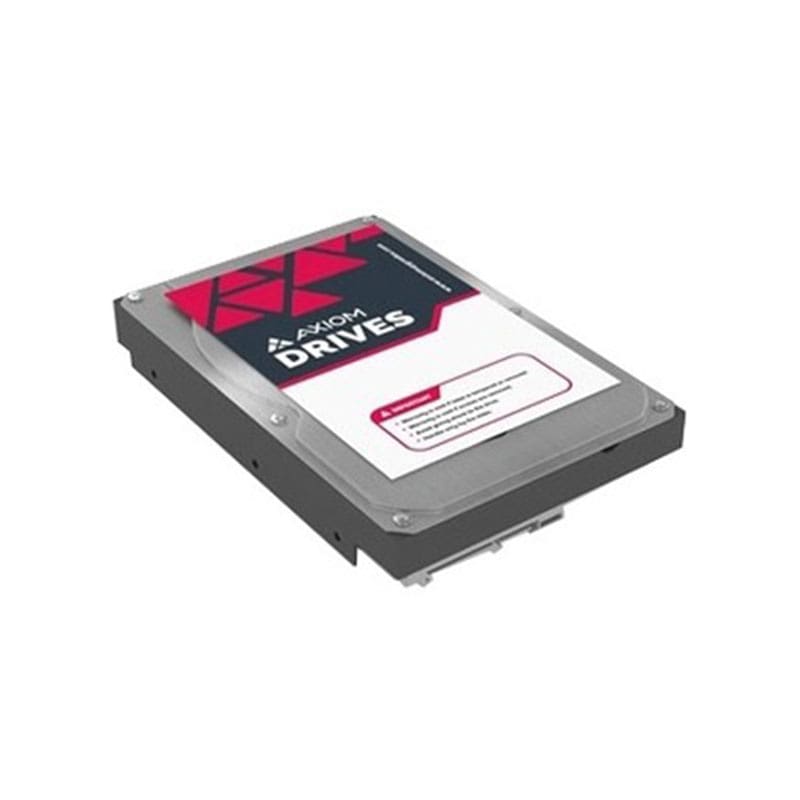

AXHD14T7235S3E Technical Specifications
Axiom Enterprise Bare Drive Hard Drive 14 TB SAS 12Gb/s
Brand Axiom
Product Line Axiom
Model Enterprise Bare Drive
Manufacturer Axiom
Storage
Average Latency 4.16 millisecond
Buffer Size 256 megabyte
Bytes per Sector 528
Data Transfer Rate (Hard Drive) 1.2 GBps
Form Factor (Short) 3.5″
Form Factor (Short) (metric) 8.9 cm
Hard Drive Capacity 14 TB
Hard Drive Features 24×7 continuous operation, Dual Port
Hard Drive Type
Internal hard drive
HD Interface
Serial Attached SCSI 3
Max Internal Data Transfer Rate 261 MBps
Non-Recoverable Errors 1 per 10^15
Spindle Speed (rpm)
7200 revolutions per minute
Storage Interface
Serial Attached SCSI 3
24×7 Operation
Yes
Connectivity
Interface Provided
1 x SAS 12 Gb/s
Power
Power Consumption 5.5 Watt (idle)
Technical Information
Compatible Bay 3.5″ LFF
Hard Drive Form Factor 3.5″ LFF
Hard Drive Form Factor (metric) 8.9 cm LFF
Max Operating Temperature 140 degree Fahrenheit
Min Operating Temperature 41 degree Fahrenheit
MTBF
2,500,000 Hours
Vibration Acceleration (Non-operating) 2.27 gram
Vibration Frequency Range (Non-operating) 10-500 Hz
Product Information
Packaged Quantity 1
Product Type Hard Drive
