B-EX2300-C12P-EDU Technical Specifications

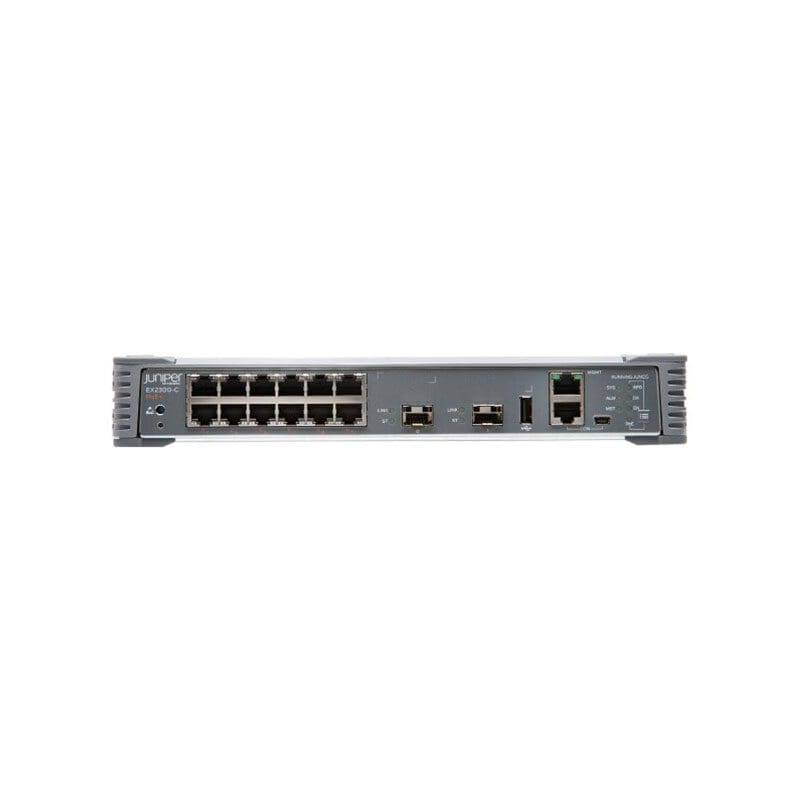

Juniper Networks EX Series EX2300-C-12P switch 12 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX2300-C-12P
Kit :E-Rate Bundle
Packaged Quantity :1
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :1.25 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Switching capacity: 64 Gbps, Throughput: 47 Mpps
Capacity
Capacity :Multiple Spanning Tree Protocol instances: 64, IPv4 routes (Multicast): 2048, IPv4 routes (Unicast): 512, IGMP snooping entries: 1000, IPv6 routes (Multicast): 1024, Maximum of neighboring networks: 750, Maximum member ports per LAG: 8, ARP entries: 1024, IPv6 hosts: 2048, QoS hardware queues per port: 8, IPv4 hosts: 4096, LAG groups: 128, Virtual interfaces (VLANs): 2048, IPv6 routes (Unicast): 128
