Refurbished C1-C4510RE-S8+96V+ Technical Specifications

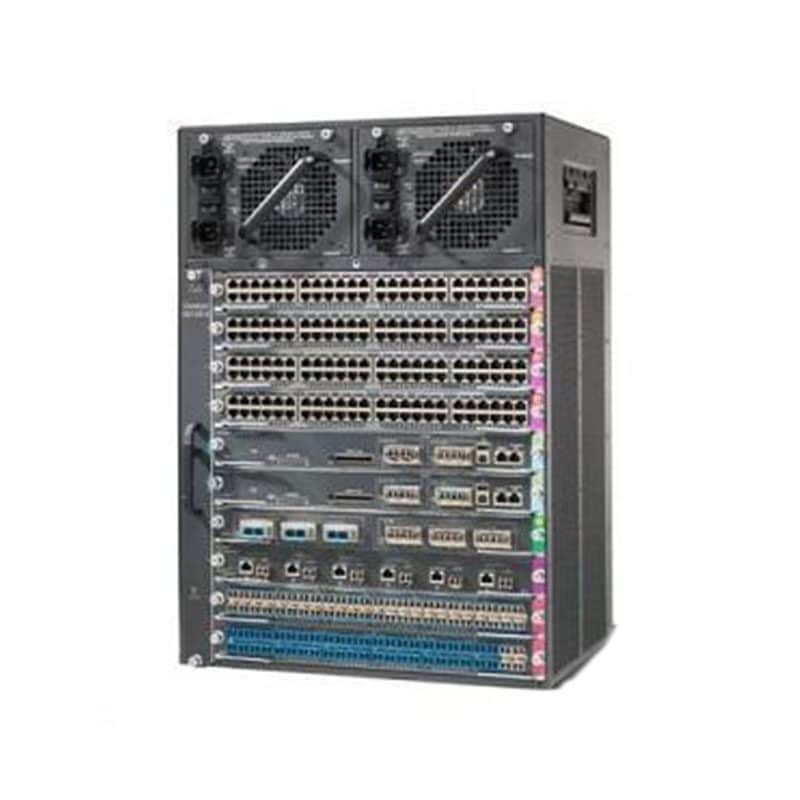

Cisco ONE Catalyst 4510R+E Switch 96 Port Managed Rack Mountable
Product Line Cisco ONE Catalyst
Product Series C4510R
Cisco ONE Catalyst 4510R+E – switch – 96 ports – managed – rack-mountable – with Cisco Catalyst 4500E Supervisor Engine 8-E, 2x Cisco Line Cards (WS-X4748-RJ45V+E)
Device Type
Switch – 96 ports – managed – with Cisco Catalyst 4500E Supervisor Engine 8-E, 2x Cisco Line Cards (WS-X4748-RJ45V+E)
Enclosure Type
Rack-mountable 14U
Subtype
Gigabit Ethernet
Ports
96 x 10/100/1000
8 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
IPv4 routing: 250 Mpps ¦ IPv6 routing: 125 Mpps ¦ Switching capacity: 928 Gbps ¦ Per-slot switching capacity: 48 Gbps
Capacity
IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ QoS hardware entries: 128000 ¦ Active VLANs: 4096 ¦ Spanning Tree Protocol instances: 10000 ¦ Switched virtual interfaces (SVIs): 4094
MAC Address Table Size
55K entries
Routing Protocol
PIM-SM, PIM-DM, PIM-SSM
Remote Management Protocol
RMON 1, RMON 2
Features
Modular design, power over Ethernet (PoE), auto-negotiation, trunking, VLAN support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Link Aggregation Control Protocol (LACP), Class of Service (CoS)
Compliant Standards
IEEE 802.3af, IEEE 802.3x, IEEE 802.1ae, IEEE 802.3at
Power Redundancy
Optional
Dimensions (WxDxH)
17.3 in x 12.5 in x 24.3 in
