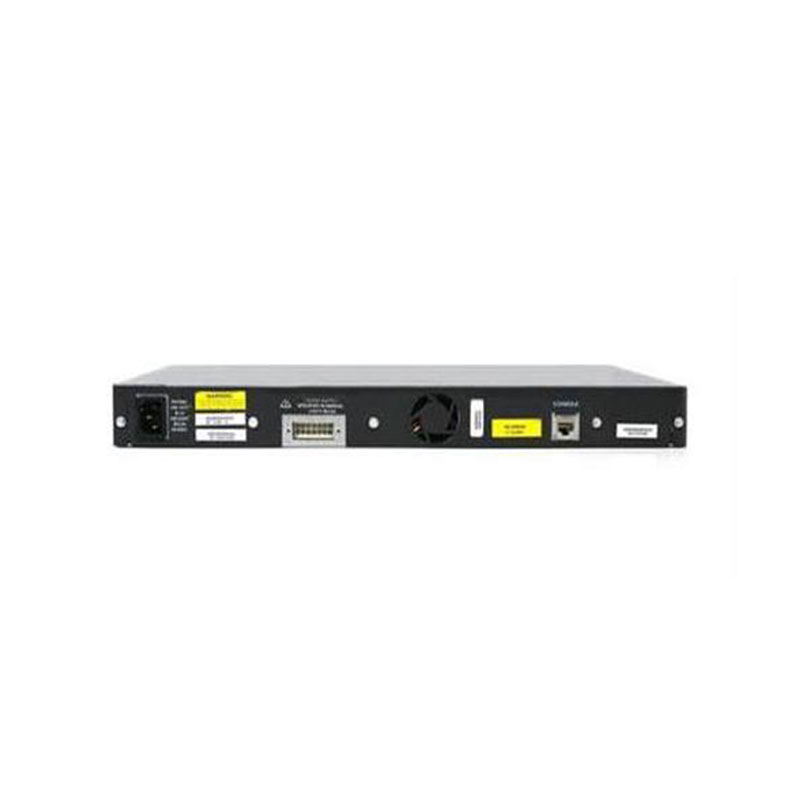

C1300-48P-4G Cisco Catalyst 1300 Series 48x 1Gb/s PoE 4x 10 Gigabit SFP Ports Layer 3 1U Rack-mountable Managed Switch
C1300-48P-4G Overview
The Cisco Catalyst C1300-48P-4G is a Layer 3 managed Gigabit Ethernet switch designed for enterprise-class access networks, branch offices, and SMB deployments. It provides 48 Gigabit RJ-45 PoE/PoE+ ports to power IP phones, access points, and IoT devices, along with 4 uplink ports (10G SFP for fiber connectivity) that deliver flexible high-speed network expansion.Built in a 1U rack-mountable form factor, the switch combines high-density Power over Ethernet support with advanced switching and routing capabilities. With Layer 3 functionality, it supports dynamic routing protocols, VLAN segmentation, multicast, QoS, and enhanced security features, making it suitable for converged data, voice, and video networks.
C1300-48P-4G Technical Specifications
Cisco Catalyst 1300 Series 48x 1Gb/s PoE 4x 10 Gigabit SFP Ports Layer 3 1U Rack-mountable Managed Switch
Manufacturer Part Number: C1300-48P-4G
Brand Name: Cisco
Product Line: Catalyst 1300 Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 48
Gigabit Ethernet Ports: 48 x 10/100/1000Base-T PoE+ RJ-45
Uplink Ports: 4 x 1G/10G SFP
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs
Spanning Tree Protocols: STP, RSTP, MSTP
Static & Dynamic Routing: Supported (RIP, OSPF, EIGRP)
Link Aggregation: IEEE 802.3ad LACP
Multicast Support: IGMP Snooping, MLD
Quality of Service: 8 hardware queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, DHCP Snooping, Port Security
Redundancy: VRRP, HSRP supported
