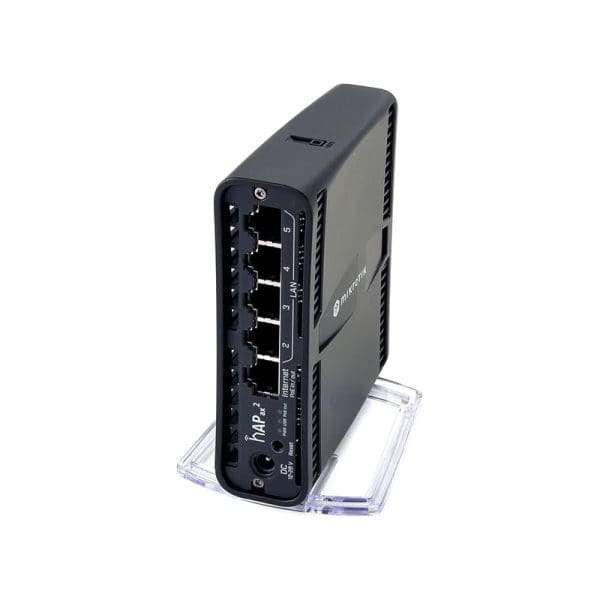

C52iG-5HaxD2HaxD-TC-US MikroTik IPQ-6010 864 MHz RouterOS

C52iG-5HaxD2HaxD-TC-US Technical Specification

MikroTik hAP ax² Quad-Core IPQ-6010 864 MHz, RAM 1GB, RouterOS, License level 4

Manufacturer: MikroTik
CPU: Quad-Core IPQ-6010 864 MHz
CPU architecture: ARM 64bit
Size of RAM: 1 GB
Storage: 128 MB, NAND
Number of 1G Ethernet ports: 5
Number of 1G Ethernet ports with PoE-out: 1
Switch chip model: IPQ-6010

Wireless interface model: QCN-5052
Wireless: 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11 802.11ax dual-chain
Wireless antenna max gain: 2.4 GHz (4.5 dBi), 5 GHz (4 dBi)
Dimensions: 120 x 101 x 37 mm (4.72″ x 3.97″ x 1.45″)
Operating system: RouterOS, License level 4
Operating temperature: -40°C to +50°C

Powering
Number of DC inputs: 2 (PoE-in, DC jack)
PoE-in input Voltage: 18-28 V
DC jack input Voltage: 12-28 V
Max total out: 0.6 A
Total output power: 16.8 W
Power adapter nominal voltage: 24 V
Power adapter nominal current: 1.2 A
Max power consumption (without attachments): 12 W
Max power consumption: 27 W
