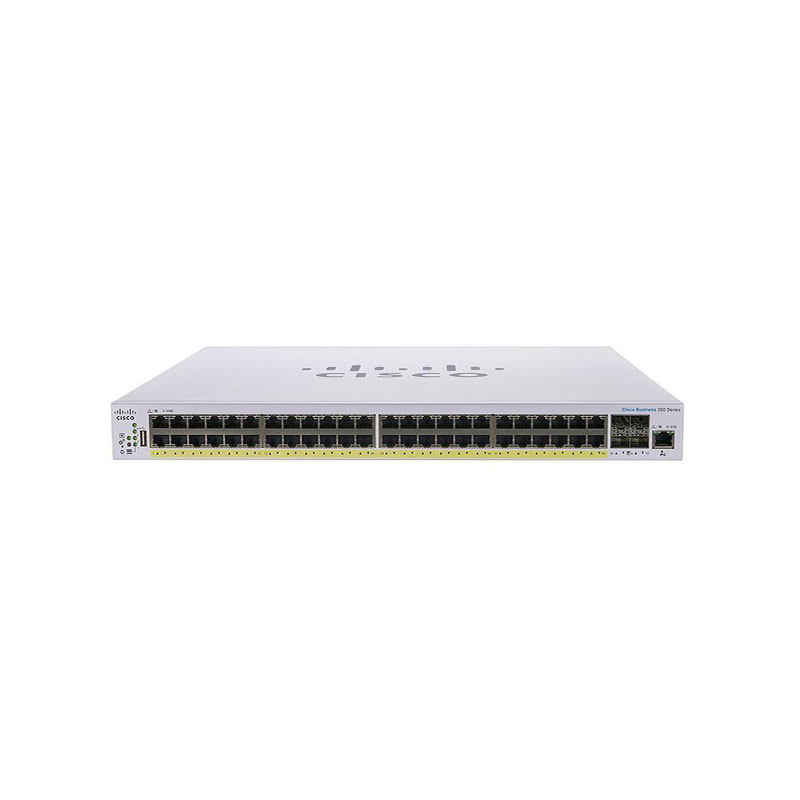

CBS350-48NGP-4X Cisco Systems Business 350 Series 48-Port Fully Managed PoE Gigabit Ethernet Switch
CBS350-48NGP-4X Overview
The Cisco CBS350-48NGP-4X is a 48-port Gigabit Ethernet fully managed switch from the Cisco Business 350 Series, designed for small to medium-sized businesses requiring high-performance, secure, and scalable networking. It features 48x 10/100/1000 RJ-45 PoE+ ports, capable of powering devices such as IP phones, wireless access points, and security cameras directly through the network cabling.Additionally, it includes 4x 10G SFP+ uplink ports, providing high-speed connectivity to core switches, servers, or aggregation layers. As a Layer 3 capable switch, it supports static routing, VLANs, ACLs, QoS, and advanced security features, ensuring optimized traffic flow, network segmentation, and protection of critical applications.
CBS350-48NGP-4X Technical Specifications
Cisco Systems Business 350 Series 48-Port Fully Managed PoE Gigabit Ethernet Switch
Part Number: CBS350-48NGP-4X
Series: Cisco Business 350 Series
Type: Layer 3 Managed PoE Gigabit Ethernet Switch
Total Ports: 52
Gigabit Ethernet Ports: 48 x 10/100/1000 RJ-45 PoE+
Uplink Ports: 4 x 10G SFP+
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing Protocols: IPv4/IPv6 Static Routing, RIP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, IEEE 802.1p, DSCP, CoS
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Syslog
Stacking Capability: Up to 4 units
Port Mirroring: Supported
PoE Standard: IEEE 802.3af/at (PoE+)
