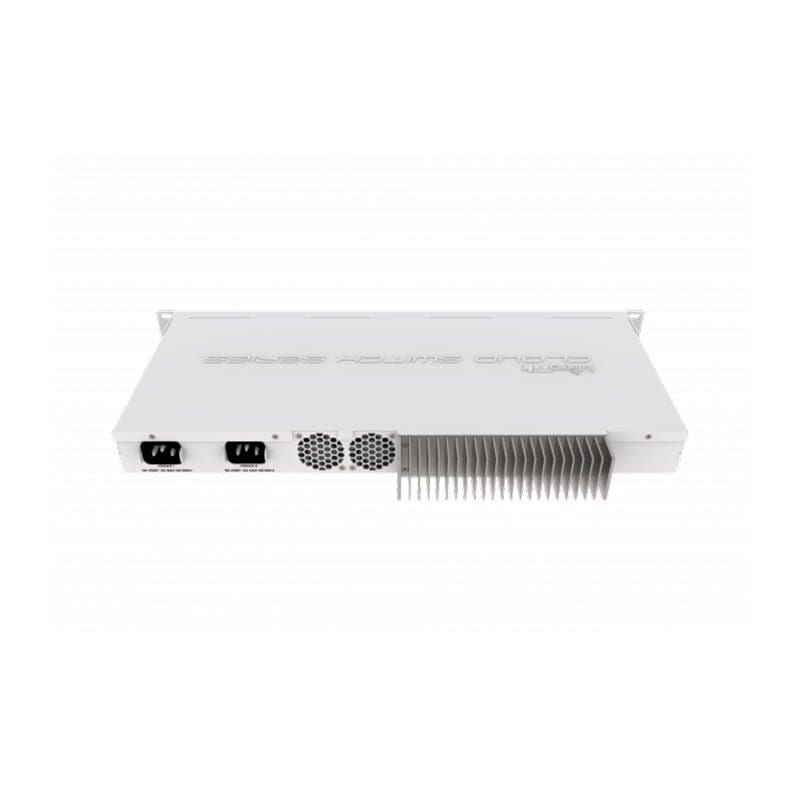

CRS317-1G-16S+RM Technical Specifications
MikroTik Cloud Router Switch w/ 16 SFP+ Cages
Manufacture Part Number
Manufacture : MikroTik
Boot option for SwOS or RouterOS
Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation
Port security
Web-based GUI
800MHz CPU
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Link Aggregation (LACP)
Access Control List
MikroTik neighbor discovery
SNMP v2/v3
Rackmount and tabletop
Product Specifications
CPU: 98DX8216B0 800MHz
Size of RAM: 1GB
Storage Type: Flash
Storage Size: 16MB
Dimensions: 443 x 224 x 44mm
License Level: 6
Operating System: RouterOS or SwitchOS
Number of AC Inputs: 2
AC Input Range: 110 to 240V
Redundant Supply: Yes
Max Power Consumption: 42W
Active Case Cooling: Yes
