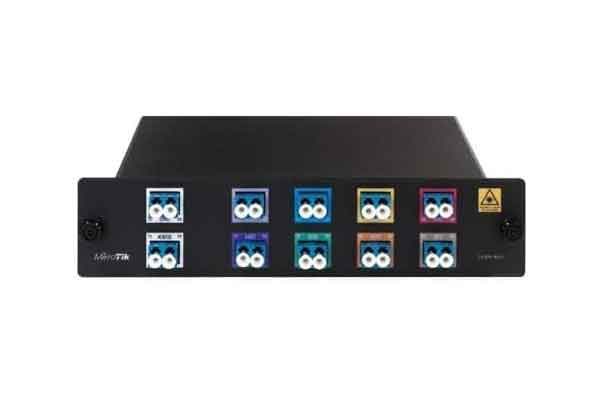

CWDM-MUX8A, 8-channels CWDM MUX/DEMUX Module

CWDM-MUX8A Overview

The 8-Channel Multiplexer/Demultiplexer (CWDM-MUX-8A) allows you to multiplex/demultiplex eight separate channels into one pair of fiber. Dual fiber is used for both the network connection and the CWDM GBIC or CWDM SFP transceiver connections. The eight available wavelengths are 1470-nm, 1490-nm, 1510-nm, 1530-nm, 1550-nm, 1570-nm, 1590-nm, and 1610-nm. The multiplexer/demultiplexer, is equipped with a monitor port that allows you to attach a power meter or an optical spectrum analyzer to assist you in monitoring and troubleshooting the network

$5,845

Buy Now
Availability: In Stock
SKU:cwdm-mux8a
Brand:

CWDM-MUX8A Technical Specifications

8-Channel Multiplexer Passive Optical System CWDM Mux/Demux Module

Product Code: CWDM-MUX8A
Product Type: Data Multiplexer
Number of LC Ports: 10
LC Port Type: Duplex
Connectivity Technology: Wired
Media Type Supported: Optical Fiber

The CWDM is a passive MUX/DEMUX unit, which allows to combine up to eight fiber links into one, to simplify and reduce the cost of long distance fiber installations. At the other location, the combined line is split back up again, so that instead of eight long fiber lines, you would only need one. The Coarse Wavelength-Division Multiplexing (CWDM) technology offers a solution which will increase capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling and will reduce costs for a new fiber optic deployment.
