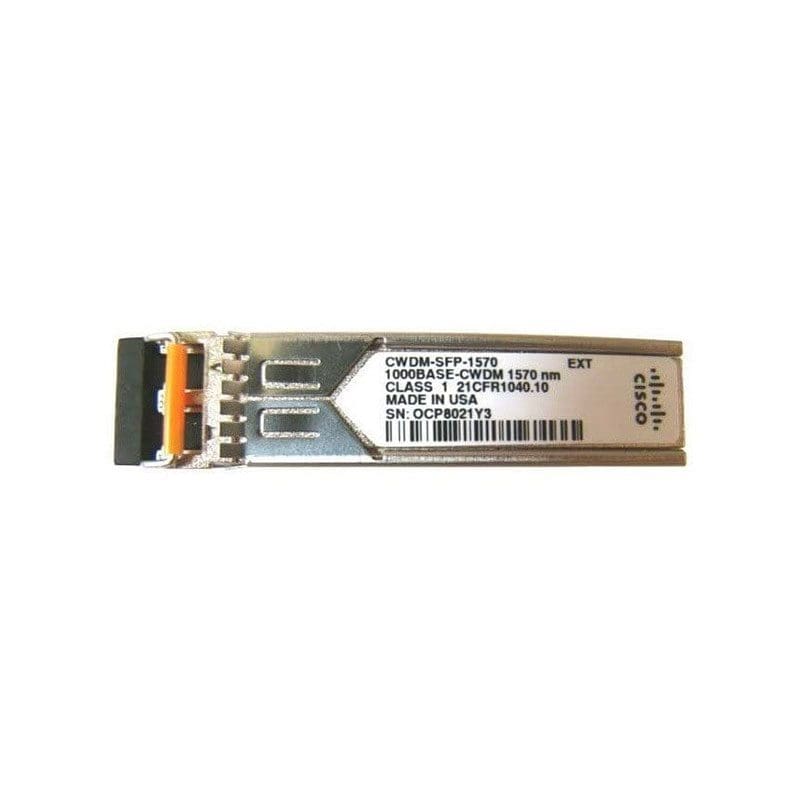

CWDM-SFP-1570 Cisco CWDM 1570nm SFP Gigabit Transceiver

CWDM-SFP-1570 Technical Specifications

Cisco CWDM 1570nm SFP Gigabit Ethernet and 1G/2G FC Transceiver Module

General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: CWDM-SFP-1570
Brand Name: Cisco
Product Name: CWDM 1570-nm SFP
Product Type: SFP
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 1 x 1000BASE-CWDM
Interfaces/Ports Details: 1 x LC Duplex 1000Base-X
Media & Performance
Connectivity Media: Optical Fiber 1000Base-X
Data Transfer Rate: 2.12 Gbps Fibre Channel Full-duplex
Data Transfer Rate: 1.25 Gbps Gigabit Ethernet Full-duplex
Miscellaneous
Additional Information-
Spare Product
Center wavelength is 1570nm
Color: Orange
Compliant with the ITU-T G.694.2 CWDM grid
Compatible with Fibre Channel Draft Physical Interface Specification (FC-PI 10.0)
Fibre Channel 1.06 and 2.12 Gbps full-duplex links with an optical link budget of 28 dB
Compatibility-: Catalyst 2900 series, Catalyst 2950 series, Catalyst 2960 series, Catalyst 3560 series
MDS 9000
