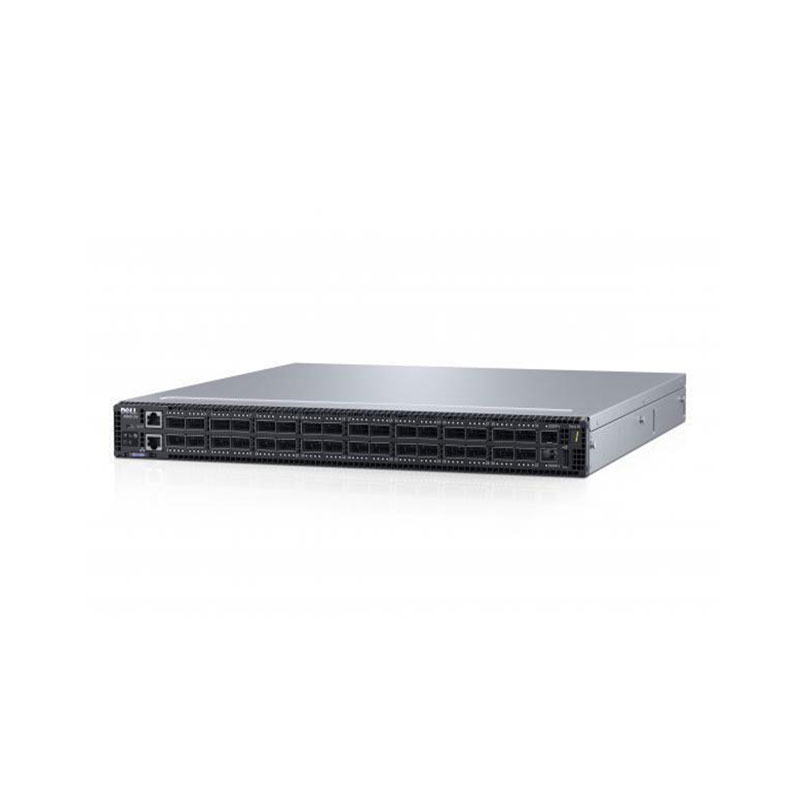

D2GJ7 Dell 32 x QSFP+ Ports 40GBase-X Layer 3 Managed 1U Rack-mountable Switch
D2GJ7 Overview
The Dell D2GJ7 is a high-density 40GbE Layer 3 managed switch built for data centers and enterprise core networks that demand maximum throughput and scalability. It features 32 QSFP+ ports, each capable of delivering 40 Gigabit Ethernet connectivity, making it ideal for high-bandwidth applications, virtualization, and storage networks.As a Layer 3 switch, it supports advanced routing protocols, inter-VLAN routing, and traffic management for complex network environments. The switch ensures low-latency performance and efficient handling of large-scale east-west traffic, critical for modern cloud and virtualization workloads.
D2GJ7 Technical Specifications
Dell 32 x QSFP+ Ports 40GBase-X Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Manufacturer Part Number: D2GJ7
Brand Name: Dell
Product Line: Dell Networking
Product Type: Managed Layer 3 Ethernet Switch
Total Ports: 32
Port Type: 32 x 40G QSFP+
Switching Capacity: 2.56 Tbps
Forwarding Rate: 1,428 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 512,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Routing: Static, OSPF, BGP, IPv4/IPv6, VRF
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, RADIUS, TACACS+, MACsec (optional)
Management: CLI, Web GUI, SNMP, REST API
High Availability: MLAG, VRRP, ECMP
Port Mirroring: Supported
Stacking Capability: Supported (via QSFP+ ports)
LED Indicators: Power, Status, Link/Activity, Speed
PoE Support: Not available
