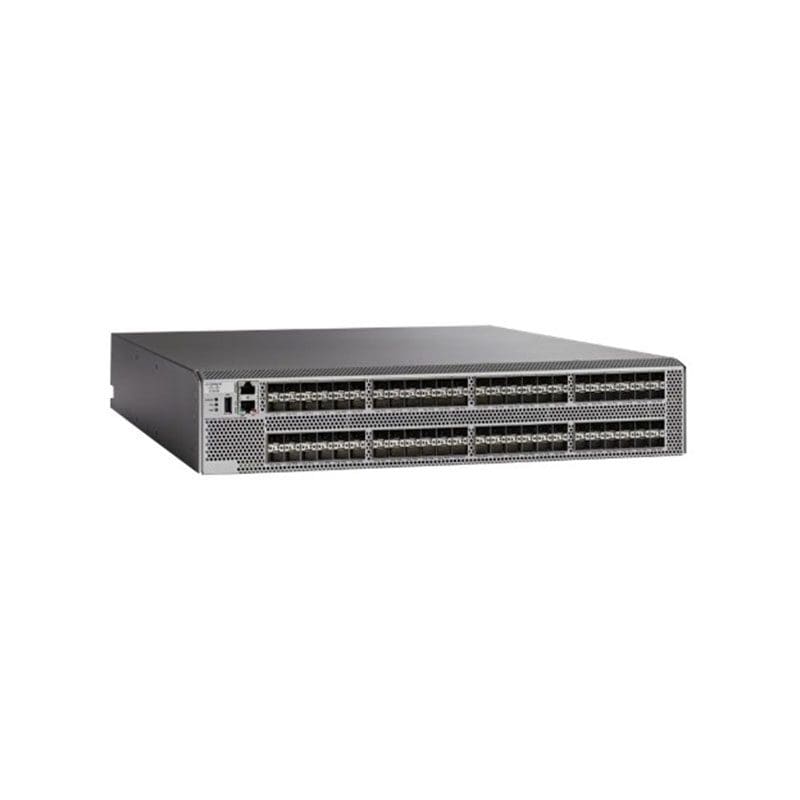

Refurbished DS-C9396S-96IK9 Technical Specification
Cisco MDS 9396S Switch 96 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco MDS
Model :9396S
Packaged Quantity :1
Networking
Type :Switch
Subcategory :Fibre Channel and SAN
Subtype :Fibre Channel
Form Factor :Rack-mountable
Ports Qty :96
Fibre Channel :FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-BB-6, FC-DA, FC-DA-2, FC-FLA, FC-FS, FC-FS-2, FC-FS-3, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-IFR, FC-LS, FC-LS-2, FC-MI, FC-MI-2, FC-MI-3, FC-MSQS, FCP, FCP-2, FCP-3, FCP-4, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PLDA, FC-SB-2, FC-SB-3, FC-SB-4, FC-SB-5, FC-SP, FC-SP-2, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-Tape, FC-VI
Manageable :Yes
Remote Management Protocol :CLI, RMON, SMI-S, SNMP 3, SSH-2
Features :Access Control List (ACL) support, Port air intake, Ports on Demand, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Remote Switch Port Analyzer (RSPAN)
Ports
Qty :96
Interface Provided
Interfaces :1 x 1000Base-T management, 1 x management (RS-232), 1 x USB, 96 x 16Gb Fibre Channel SFP+, 96 x 16Gb Fibre Channel SFP+ Ports on Demand
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Power Provided :1200 watt
Nominal Voltage :AC 100/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :700 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :2
Compliant Standards :ACA TS001, AS/NZS 3260, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, EMC, EN 55022 Class A, EN 60825, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR21 Part 1040, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825, IEC 60950, UL 60950, VCCI Class A
Dimensions & Weight
Width :17.4 inch
Depth :22.3 inch
Height :3.4 inch
Weight :39.24 lbs
