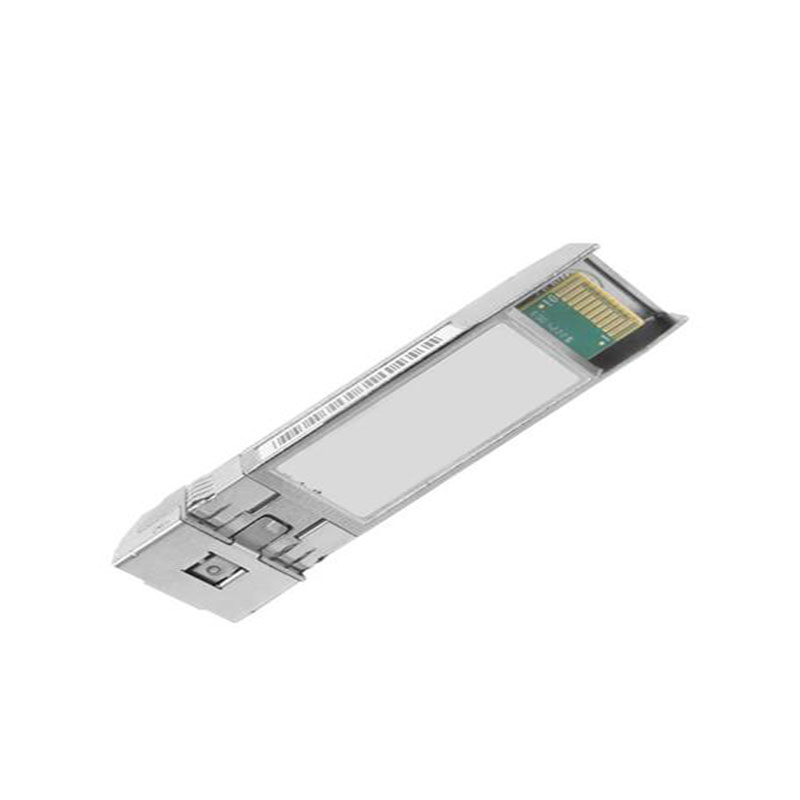

DS-SFP-FC64G-SW Cisco 64Gb/s SFP+ 410m 850nm LC MMF Transceiver
DS-SFP-FC64G-SW Overview
The Cisco DS-SFP-FC64G-SW is a high-performance 64Gb/s Fibre Channel shortwave transceiver designed for next-generation storage area networks (SANs). Operating over multi-mode fiber (MMF), it supports distances up to 100m on OM4 and 70m on OM3, while extended performance can reach up to 410m depending on fiber type and quality.This module uses an 850nm VCSEL laser and features a duplex LC optical connector, ensuring efficient, low-latency, and reliable transmission for mission-critical enterprise storage, backup, and high-speed data replication.It is hot-swappable, allowing easy installation, upgrades, and replacements without downtime. The DS-SFP-FC64G-SW is fully compliant with Fibre Channel Industry Standards, ensuring seamless interoperability across Cisco switches, directors, and other SAN devices.
DS-SFP-FC64G-SW Technical Specifications
Cisco 64Gb/s SFP+ 410m 850nm LC MMF Transceiver
Manufacturer Part Number: DS-SFP-FC64G-SW
Brand Name: Cisco
Product Type: SFP+ Fibre Channel Transceiver
Data Rate: 64Gbps
Transceiver Type: 64GBase-SW (Short Wavelength)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: LC Duplex
Maximum Reach: Up to 100m (OM3) / 125m (OM4) / 410m (OM5)
Form Factor: SFP+
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: Cisco MDS series, Nexus switches, and Fibre Channel storage networks
Application: High-speed Fibre Channel SAN connectivity
Standards Compliance: FC-PI-7, SFP+ MSA
Backward Compatibility: Supports 32Gbps, 16Gbps, and 8Gbps Fibre Channel
Operating Temperature: 0°C to 70°C
Low Power Consumption: Optimized for data center use
