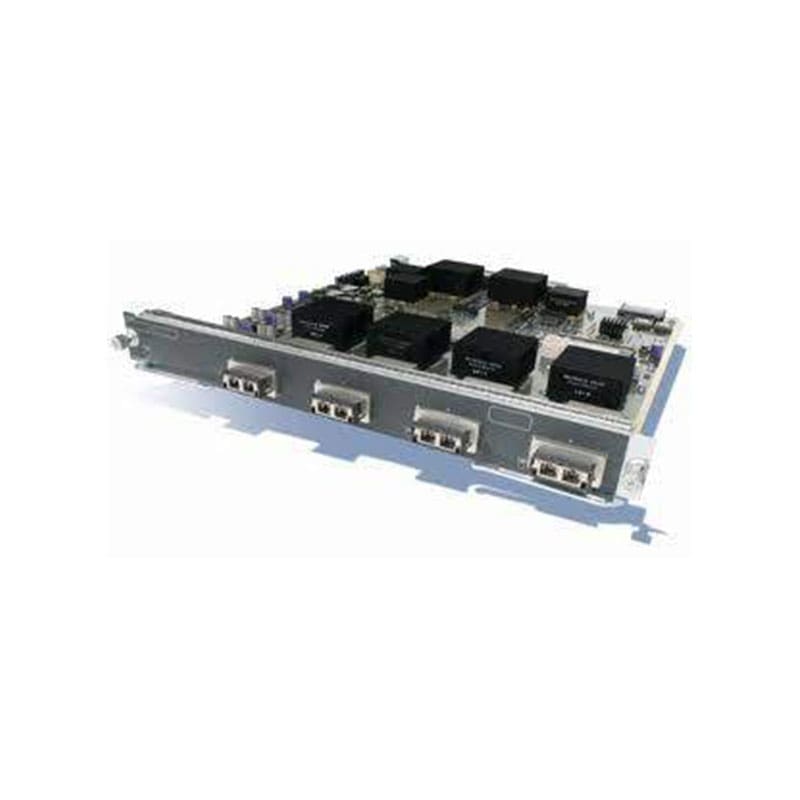

DS-X9704 Cisco Switching Module Switch 4 ports plug-in Module
DS-X9704 Overview
The Cisco 4-Port 10-Gbps Fiber Channel Switching Module is hot swappable and includes hot-swappable, X2 form-factor pluggable, SC type interfaces. Individual ports can be configured with short wave or long-wave X2 optical transceivers for connectivity up to 10 kilometers. Up to 250 buffer credits per port are supported for maximum extensibility without requiring additional licensing.
$409
DS-X9704 Technical Specifications
Cisco Switching Module Switch 4 ports plug-in Module
Brand: Cisco
Product Line: Cisco Switching Module
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Features: Syslog support
Form Factor (Hubs & Switches): Plug-in module
Ports: 4
Product Type: Switch
Remote Management: RMON, SNMP 3, Telnet
Routing Protocol: RRP
Subcategory: Fibre Channel and SAN
Switching Type: Fibre Channel
Expansion Slots
Compatible Slots Required: 1 x expansion slot
Connectivity
Interface Provided: 4 x X2
Port Quantity: 4
Port Type: 10Gb Fibre Channel
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90%
Product Information
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS+
Packaged Quantity: 1
