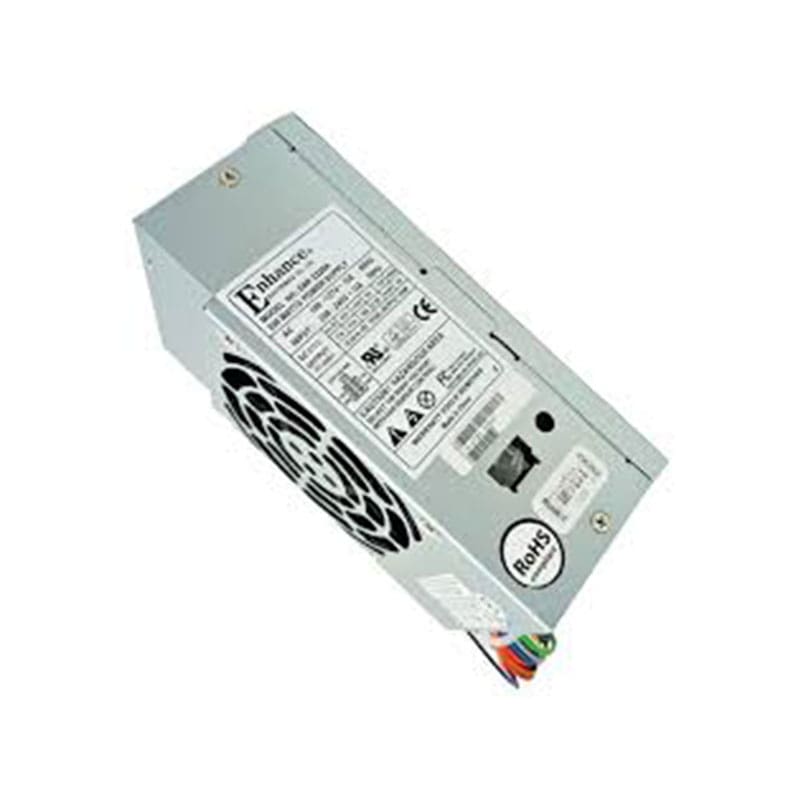

ENP-2220A Enhance Electronics 200-Watt 20 Pin Six Power Supply

ENP-2220A Technical Specification

Enhance Electronics 200-Watt 20 Pin Six Power Supply

Manufacturer: ENHANCE ELECTRONICS
Brand: ENHANCE ELECTRONICS
Altitude: Operating:10,000 ft; Storage:50,000 ft
Cooling Fan: 12V DC, 80mm
Dimension (WxLxH): 62 x 150 x 82 (mm); 2.44 x 5.91 x 3.22 (inch)
EMC Regulation :FCC, CE
Frequency: 50 ~ 60 Hz
Holdup Time: > 14 ms @ Full Load

Humidity: Operating:85%; Storage:95%
Input current: 5.0 Arms @ 115 VAC, 3.0 Arms @ 230 VAC
Input Voltage: 100 ~ 127 VAC, 200 ~ 240 VAC, Manual Select
MTBF: 100,000 HRS
Safety Approvals: UL/CUL, CB, TUV
Temperature: Operating:10~50°C; Storage:-20~60°C
