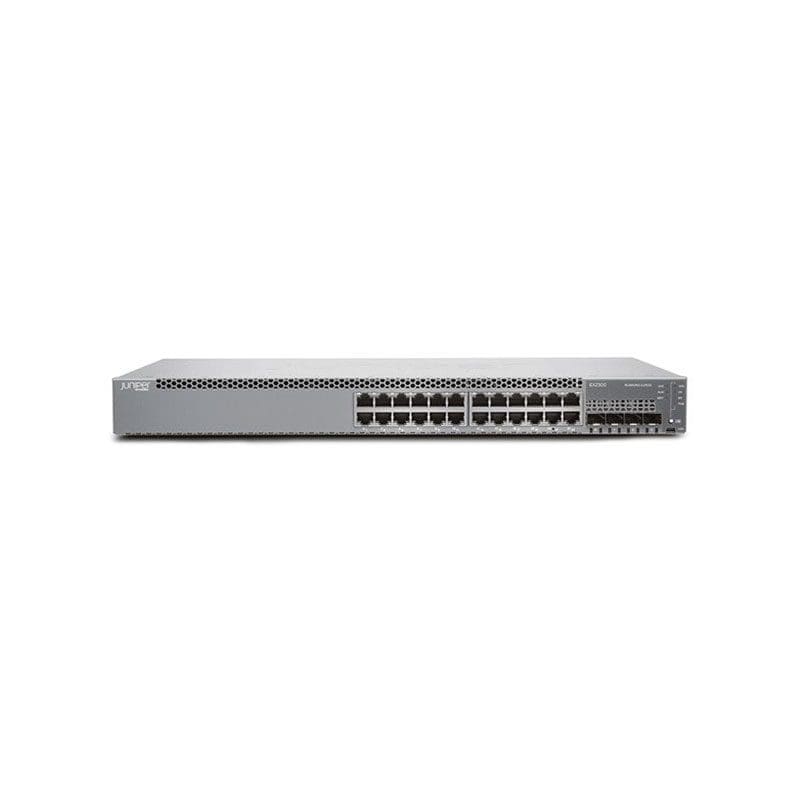

EX2300-24T-VC Juniper Networks EX Series EX2300-24T switch
EX2300-24T-VC Overview
The Juniper Networks EX2300 Ethernet Switch offers an economical, entry-level, standalone solution for access layer deployments in branch and remote offices, as well as enterprise campus networks. To simplify network operations
$1,247
Buy Now
EX2300-24T-VC Technical Specifications
Juniper Networks EX Series EX2300-24T switch 24 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX2300-24T
Packaged Quantity :1
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :1.25 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Throughput: 95 Mpps, Switching capacity: 128 Gbps
Capacity
Capacity :Maximum of neighboring networks: 750, Multiple Spanning Tree Protocol instances: 64, IPv6 hosts: 2048, Maximum member ports per LAG: 8, IPv4 hosts: 4096, IPv4 routes (Multicast): 2048, VLAN Spanning Tree Protocol instances: 253, ACL entries: 1500, ARP entries: 1024, IPv6 routes (Multicast): 1024, LAG groups: 128, IPv6 routes (Unicast): 128, IPv4 routes (Unicast): 512, Active VLANs: 2048, Virtual interfaces (VLANs): 4093, QoS hardware queues per port: 8
