Refurbished EX3400-48T-TAA Technical Specifications

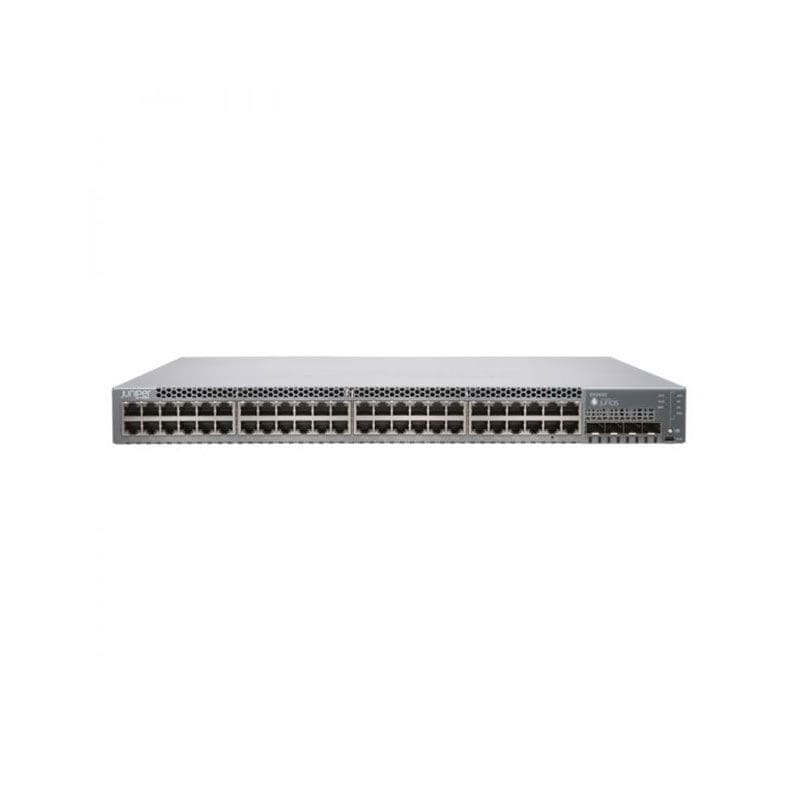

Juniper Networks EX Series EX3400-48T switch 48 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX3400-48T
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Clock Speed :1 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Switching capacity (64-byte packet size): 336 Gbps, Throughput: 250 Mpps
Capacity
Capacity :ARP entries: 8000, IPv6 hosts: 18000, QoS hardware queues per port: 12, IPv4 hosts: 36000, IPv4 routes (Multicast): 4000, IPv6 routes (Multicast): 2000, Maximum member ports per LAG: 16, Multiple Spanning Tree Protocol instances: 64, LAG groups: 128, IGMP snooping entries: 1000, ACL entries: 1500, Virtual interfaces (VLANs): 4093, Maximum of neighboring networks: 8000, VLAN Spanning Tree Protocol instances: 510
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable
Stackable :Stackable
Max Units In A Stack :10
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :MSDP, Static IPv6 routing, CIDR, RIP-1, RIP-2, IS-IS, RIPng, Static IPv4 routing
MAC Address Table Size :32000 entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :SNMP 3, SNMP 1, RMON 3, RMON 1, RMON 2, TFTP, HTTPS, SNMP 2c, RMON 9, SSH, HTTP, Telnet, CLI
Features :Front to back airflow, Class of Service (CoS), Store and forward, Non-Stop Bridging (NSB), Multiple VLAN Registration Protocol (MVRP), Dynamic ARP Inspection (DAI), DHCP server, DHCP client, System log, Spanning Tree Protocol (STP) support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), IPv6 support, Cable Diagnostics Function, Management Information Base (MIB), NTP time synchronization, VLAN support, SNTP support, ICMP Router Discovery Protocol (IRDP), Internet Control Message Protocol (ICMP), DoS attack prevention, Non-Stop Routing (NSR), Smoothed Deficit Weighted Round Robin (SDWRR), Redundant trunk group (RTG), Virtual Chassis technology, Port mirroring, Energy Efficient Ethernet, Per-VLAN Spanning Tree Plus (PVST+), Temperature sensor, ARP support, Graceful Route Engine Switchover (GRES), Auto-uplink (auto MDI/MDI-X), Management Information Base (MIB) II, Access Control List (ACL) support, Strict Priority (SP), MACsec support, Zero Touch Auto Provisioning, RARP support, Tagged VLAN, DHCP proxy, DHCP snooping, DiffServ Code Point (DSCP) support, IP Precedence, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Forwarding-Lite (VRF-Lite), DiffServ support, BOOTP support, DHCP relay, Quality of Service (QoS), VLAN Spanning Tree Protocol (VSTP), Captive Portal
Compliant Standards :IEEE 802.1w, ANSI/TIA-1057, IEEE 802.1ae, IEEE 802.1ag, IEEE 802.3, IEEE 802.1p, IEEE 802.1BR, IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3u, IEEE 802.1x, IEEE 802.1ak, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ad (LACP), IEEE 802.1s
Ports
Qty :48
Type :10/100/1000
Ports (2nd)
Qty :4
Type :Gigabit SFP / 10 Gigabit SFP+
Ports (3rd)
Qty :2
Type :40 Gigabit QSFP+
Interface Provided
Interfaces :1 x serial management, 2 x 40Gbit LAN QSFP+ uplink/stacking, 4 x 10Gbit LAN SFP+ uplink/stacking, 1 x 100Base-TX RJ-45 management, 48 x 1000Base-T RJ-45
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :1
Max Supported Qty :2
Power Provided :150 watt
Nominal Voltage :AC 120/230 V
Power Consumption Operational :120 watt
Miscellaneous
Color Category :Gray
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :TTLS, TLS, PEAP, MD5
Authentication Method :Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), RADIUS, TACACS+
Compliant Standards :EN 55022 Class A, IEC 60950-1 Second Edition, cUL, ICES-003 Class A, EN 60825-1, RoHS 6/6, CB, CISPR 22 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, UL 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, FCC CFR47 Part 15 A, TUV GS, VCCI Class A, EN55024
Dimensions & Weight
Width :17.2 inch
Depth :13.8 inch
Height :1.7 inch
Weight :13.45 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
