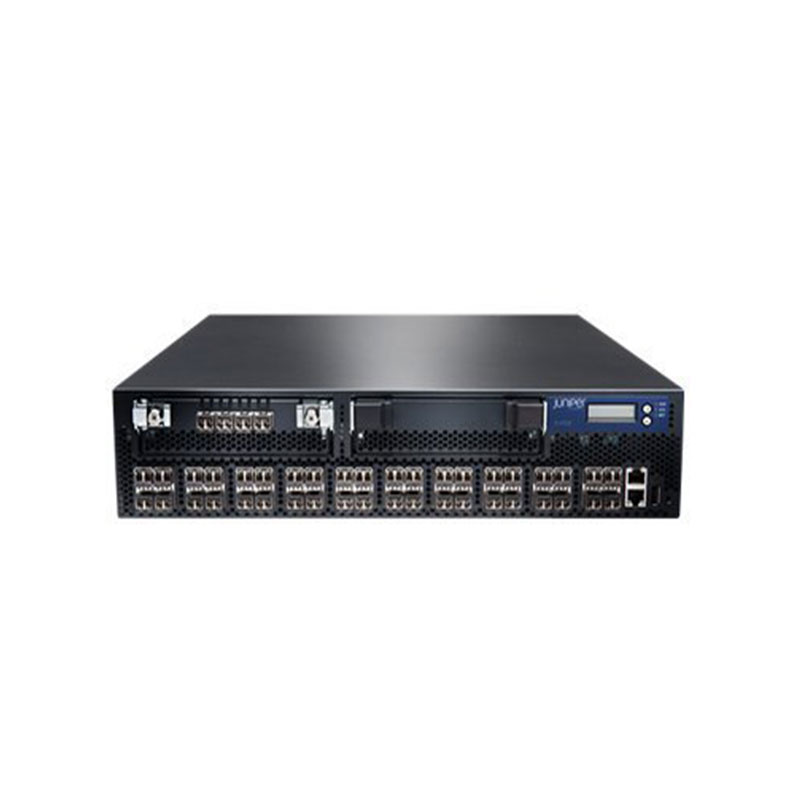

EX4500-40F-VC1-FB Juniper EX 4500 40-Port 1/10G SFP+ Converged Switch
EX4500-40F-VC1-FB Overview
The Juniper EX4500-40F-VC1-FB is a high-performance, high-density Ethernet switch built for data center, campus, and service provider environments that require reliable 10 Gigabit aggregation and advanced Layer 2/Layer 3 services. It features 40 fixed SFP+ ports, each supporting both 1 Gigabit and 10 Gigabit Ethernet, giving organizations the flexibility to mix speeds depending on current and future network requirements. This versatility makes it ideal for top-of-rack, end-of-row, or aggregation-layer deployments where large-scale, low-latency 10GbE connectivity is essential.Powered by the JUNOS operating system, the EX4500 delivers a consistent and feature-rich networking experience, supporting robust Layer 2 switching with VLANs.
EX4500-40F-VC1-FB Technical Specifications
Juniper EX 4500 40-Port 1/10G SFP+ Converged Switch
Manufacturer: Juniper Networks
Manufacturer Part Number: EX4500-40F-VC1-FB
Type: High-performance Converged Data Center Switch
Ports: 40 x 1/10G SFP+
Layer: Layer 2 / Layer 3 switching
Management: CLI, SNMP, Web-based management, Junos OS
VLAN: IEEE 802.1Q VLAN tagging supported
QoS: Advanced traffic prioritization and shaping
Security: ACLs, 802.1X authentication, MAC limiting, port security
Switching Capacity: 960 Gbps
Forwarding Rate: Up to 714 Mpps
Jumbo Frames: Supported (up to 9K)
Hot Swap: Supported (PSUs and fan trays)
Chassis Support: Standalone 2U, Virtual Chassis capable
Form Factor: Rack-mountable 2U
LEDs: Link, activity, status, power, alarms
Redundant Power: Dual hot-swappable PSUs
Cooling: Front-to-back airflow (FB model)
STP: STP, RSTP, MSTP supported
Multicast: IGMP snooping, PIM, MLD support
