EX4650-48Y-AFO Technical Specifications

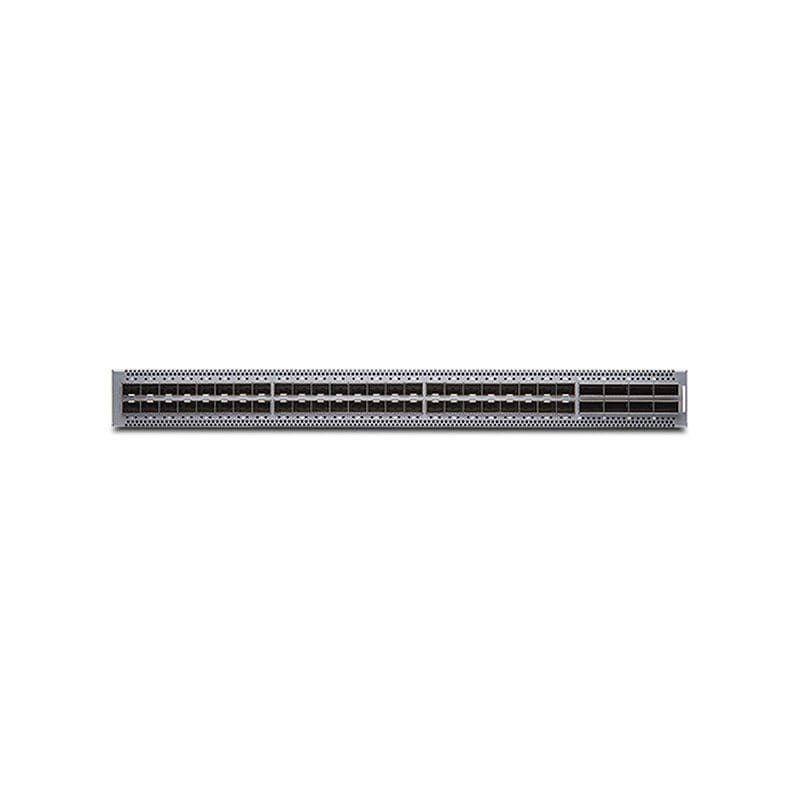

Juniper EX4650 48x25GbE+8x100GbE Ethernet Switch
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX4650-48Y
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.3 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :64 GB, 64 GB
Performance
Performance :Switching capacity: 1.49 Bpps, Switching capacity: 2 Tbps
Capacity
Capacity :Queues per port: 10, Maximum member ports per LAG: 64, IPv6 routes (Multicast): 52000, Mirroring destination VLANs per switch: 4, Firewall egress filters: 512, IPv4 routes (Multicast): 104000, IPv4 prefixes (Unicast): 360000, Virtual interfaces (VLANs): 4093, IPv4 routes (Unicast): 208000, IPv6 routes (Unicast): 104000, IPv6 prefixes (Unicast): 170000, ECMP paths: 64, Link aggregation groups: 80, Firewall ingress filters
