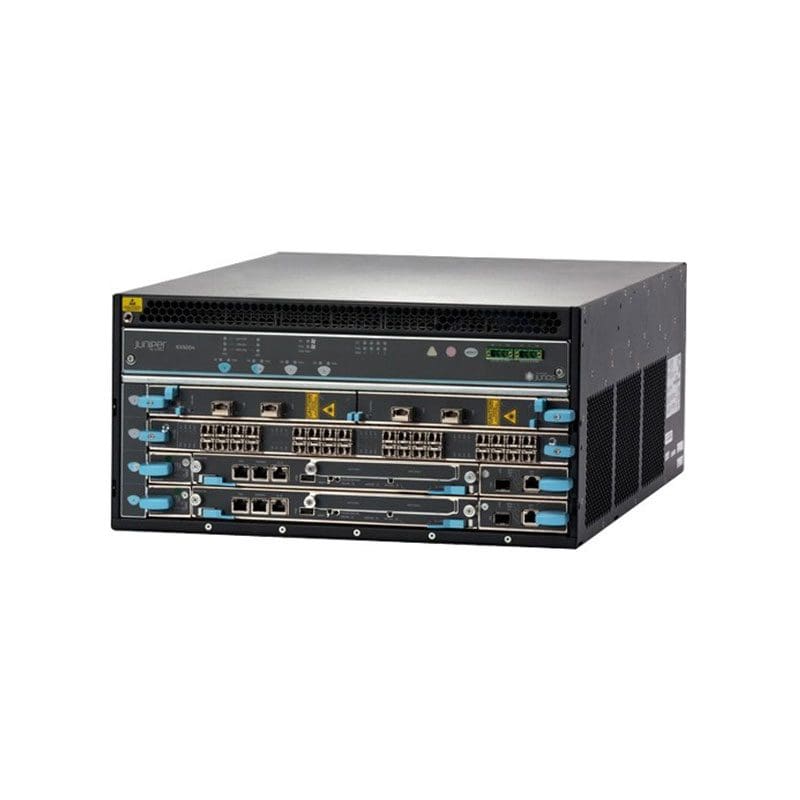

EX9204-RED3B-AC Juniper EX Series 9204 Redundant switch
EX9204-RED3B-AC Overview
The EX9200 line of programmable Ethernet switches simplifies the deployment of cloud applications, server virtualization and rich media collaboration tools in campus and data center core and aggregation environments.
$39,165
Buy Now
EX9204-RED3B-AC Technical Specifications
Juniper Networks EX Series 9204 Redundant switch managed rack mount
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :9204
Edition :Redundant
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :Midplane, 2 x 32 GB SSD
Installed Devices / Modules Qty :2
Supported Devices / Modules Qty :6
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.73 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Backplane switching capacity: 3.2 Tbps, Per slot per fabric: 480 Gbps
Capacity
Capacity :Policies: 16000, Virtual interfaces (VLANs): 32000, IPv6 routing table entries: 1000000, Multicast entries (IPv6): 256000, IPv4 routing table entries: 1000000, QoS hardware queues: 8, Multicast entries (IPv4): 256000, ARP entries: 256000
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
