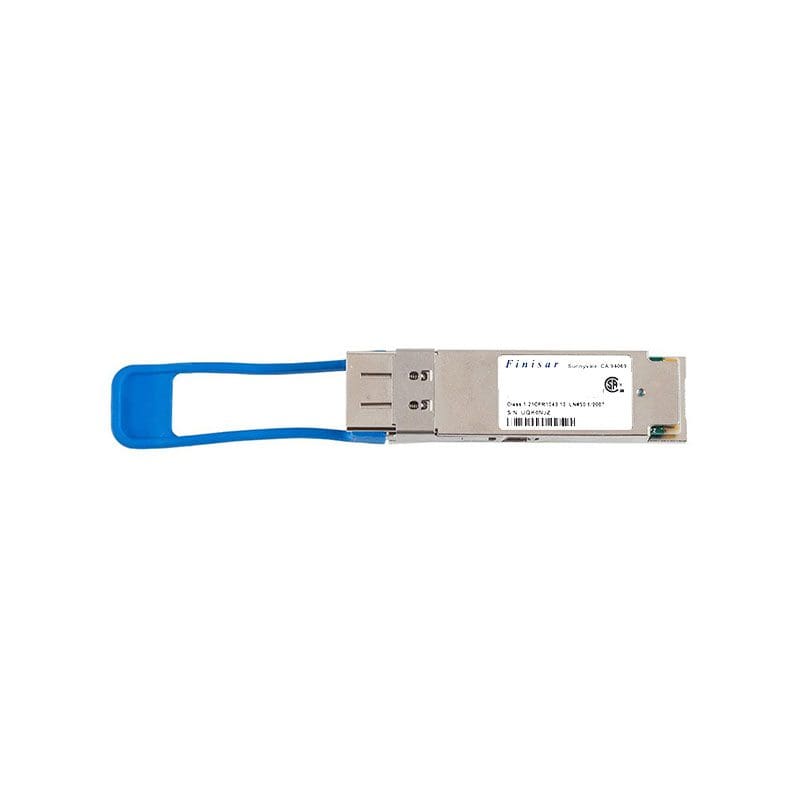

FTL4C1QM2C FINISAR Transceiver Module

FTL4C1QM2C Technical Specifications

Transceiver Module

Manufacturer: Finisar
Media Type: Single-Mode Fiber (SMF.)
Maximum Distance: 10km
Transceiver Type: QSFP
TX Wavelength: 1310 nm.
RX Wavelenght: 1310 nm.
Minimum Optical Budget: 9.7 dB
Supported Data Rate: 39.81 – 44.8 Gbps 40 Gigabit Ethernet
DDM/DOM: Supported
Temperature Range: Standard 0°-70°C
Connectors: Double LC Connectors
Tx Wavelength Bandwidth:
4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331)) Rx Wavelength Bandwidth:
4 WDM Seperated 1310nm Lanes (13nm (1271, 1291, 1311, 1331))
Minimum Transmitting Power: Each Lane -4 dB
Maximum Transmitting Power: Each Lane 2.3 dB
Receiver Sensitivity: Each Lane -13.7 dBm
Receiver Overload: Each Lane 2.3 dBm
Transmitter Type: DFB Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
Chipset: MAXIM, MINDSPEED, SEMTECH, UX
