Refurbished HX-FI-6454 Cisco UCS 6454 Fabric Switch 48 Ports
Refurbished HX-FI-6454 Overview

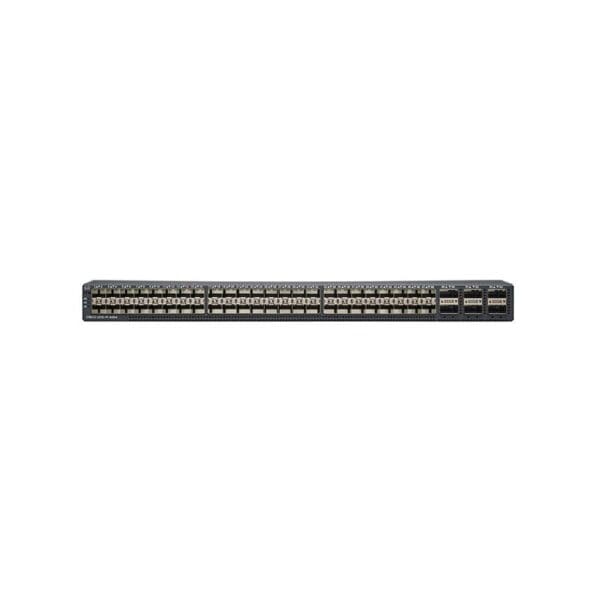

The Cisco UCS 6454 Fabric Interconnect is a core part of the Cisco Unified Computing System, providing both network connectivity and management capabilities for the system. The Cisco UCS 6454 offers line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, Fiber Channel over Ethernet (FCoE), and Fiber Channel functions.
Refurbished HX-FI-6454 Technical Specification
Cisco UCS 6454 Fabric Switch 48 Ports
Manufacturer :Cisco Unified Computing
Brand :Cisco
Product Line :Cisco UCS
Model :6454 Fabric Interconnect
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Performance
Performance :Bandwidth: 320 Gbps, Layer 2 hardware forwarding: 3.82 Tbps, Layer 2 hardware forwarding: 4.2 billion bpps, Switching capacity: 3.82 Tbps
Capacity
Capacity :Queues per port: 16, VLANs supported: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :100 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Routing Protocol :IGMP, IGMPv2, IGMPv3
MAC Address Table Size :32000 entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :RMON
Features :4 fan modules, Data Center Bridging Exchange (DCBX) support, Fabric Extender Transceiver (FET), FCoE support, Front to back airflow, LACP support, Priority-Based Flow Control (PFC), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Weighted Round Robin (WRR)
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3bg, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3x
Ports
Qty :36
Type :10/25 Gigabit SFP28
Ports (2nd)
Qty :4
Type :1/10/25 Gigabit SFP28
Ports (3rd)
Qty :6
Type :40/100 Gigabit QSFP28 (uplink)
Ports (4th)
Qty :8
Type :10/25 Gigabit Ethernet or 8/16/32 Gigabit Fibre Channel
