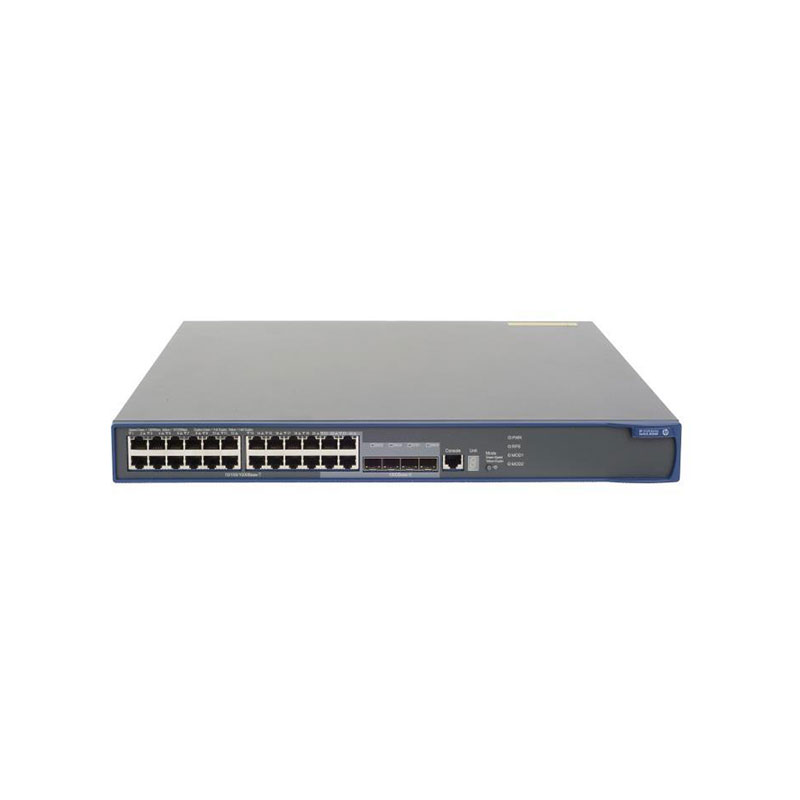

JE068-61101 HP 24-Ports 10BASE-T/100BASE-TX/1000BASE-T RJ-45 Manageable Switch
JE068-61101 Overview
The HP JE068-61101 is a Layer 2 fully managed Gigabit Ethernet switch featuring 24 RJ-45 10/100/1000Base-T ports in a rack-mountable, stackable design. It is designed for enterprise edge and SMB networks that require scalable, high-performance, and secure wired connectivity.It supports stacking for simplified management across multiple switches, as well as VLANs, link aggregation, QoS, and robust security features like ACLs and port security. Management is flexible through web GUI, CLI, or SNMP, making administration straightforward.With its 1U rack-mountable chassis, stacking capability, and energy-efficient design, the JE068-61101 delivers reliability and flexibility for growing networks. Backed by HP’s limited lifetime warranty, it is ideal for long-term enterprise deployments.
JE068-61101 Technical Specifications
HP 24-Ports 10BASE-T/100BASE-TX/1000BASE-T RJ-45 Manageable Rack-mountable Stackable Gigabit Ethernet Switch
Manufacturer Part Number: JE068-61101
Brand Name: HP
Product Line: HP 2900 Series / ProCurve
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 24
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 4 x Dual-Personality (RJ-45 or SFP)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 Supported
Dynamic Routing: RIP, OSPF Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p, DiffServ
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: 4 Groups Supported
