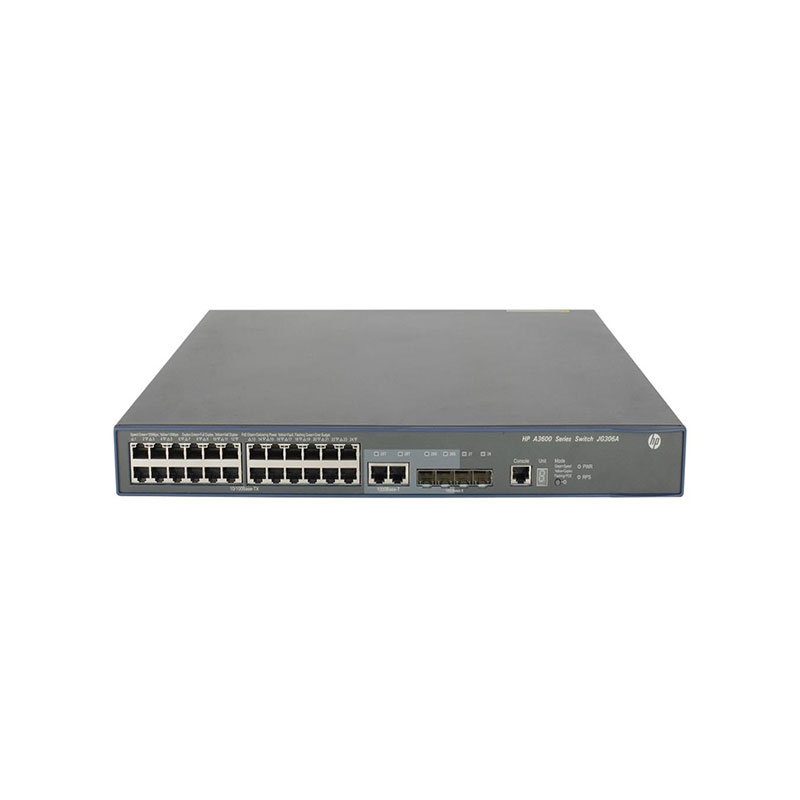

JG306A HP Switch Layer4 Managed 24 X 10/100 + 4 X Gigabit SFP + 2 X Shared 10/100/1000 Rack Mountable
JG306A Overview
The HP JG306A is a Layer 4 fully managed switch featuring 24 Fast Ethernet 10/100 RJ-45 ports, 4 dedicated Gigabit SFP ports, and 2 shared 10/100/1000Base-T uplink ports, making it a flexible solution for enterprise edge and branch networks.With Layer 4 traffic management, the switch provides enhanced application awareness and prioritization, ensuring optimized performance for business-critical services. It supports VLANs, link aggregation, QoS, ACLs, and advanced security features, delivering efficient traffic handling, network segmentation, and secure access.
JG306A Technical Specifications
HP Switch Layer4 Managed 24 X 10/100 + 4 X Gigabit SFP + 2 X Shared 10/100/1000 Rack Mountable
Manufacturer Part Number: JG306A
Brand Name: HP
Product Line: HP 1910 Series
Product Type: Layer 4 Managed Fast Ethernet Switch
Total Ports: 30
Fast Ethernet Ports: 24 x 10/100Base-T RJ-45
Gigabit Ethernet Ports: 2 x 10/100/1000Base-T RJ-45 (shared)
SFP Ports: 4 x Gigabit SFP
Uplink/Expansion Ports: 2 x Shared Combo RJ-45/SFP
Layer Support: Layer 2 / Layer 3 Lite / Layer 4
Switching Capacity: 12.8 Gbps
Forwarding Rate: 9.5 Mpps
MAC Address Table: 8,000 entries
VLAN Support: Up to 256 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w
Static Routing: IPv4 Supported (basic L3)
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
