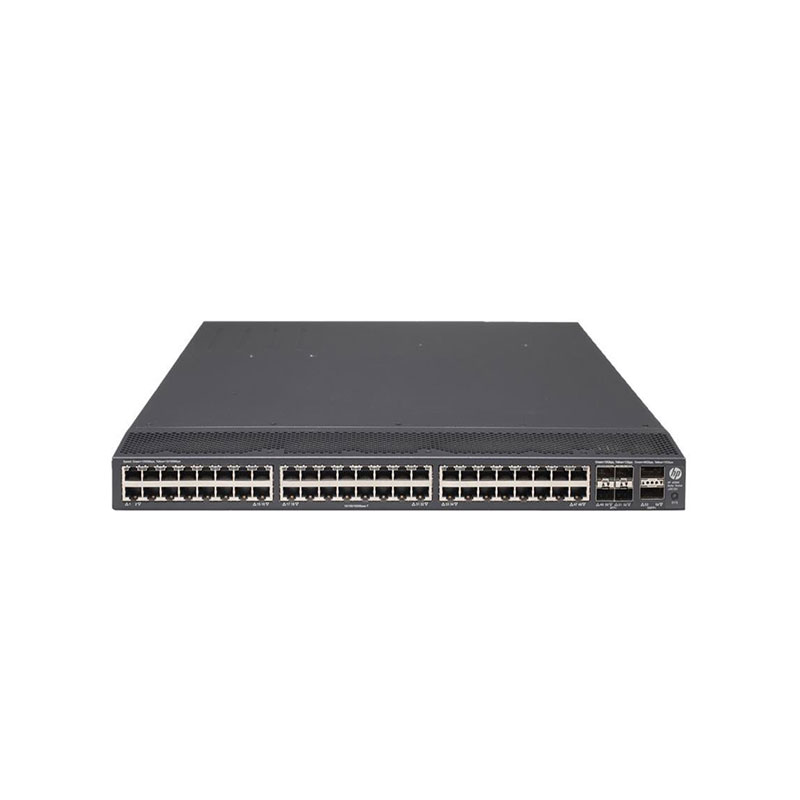

JG510-61001 HP 48-Ports QSFP+ 10/100/1000Base-T PoE Manageable Layer 3 Switch
JG510-61001 Overview
The HP JG510-61001 is a Layer 3 fully managed Gigabit Ethernet switch that offers 48 10/100/1000Base-T PoE ports with QSFP+ uplink capability. Designed for enterprise edge, aggregation, and data center deployments, it combines high-density PoE support with scalable uplink performance, making it suitable for powering IP phones, wireless access points, and surveillance systems while ensuring seamless high-speed backbone connectivity.The switch supports a comprehensive set of Layer 2 and Layer 3 features, including static and dynamic routing, VLANs, link aggregation, advanced QoS, and strong security protocols such as ACLs, RADIUS, and TACACS+. These features provide optimized traffic control, network segmentation, and robust protection for enterprise environments.
JG510-61001 Technical Specifications
HP 48-Ports QSFP+ 10/100/1000Base-T PoE Manageable Layer 3 Rack-Mountable 1U Gigabit Ethernet Switch
Manufacturer Part Number: JG510-61001
Brand Name: HP
Product Line: HP FlexNetwork 5900 Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 48
Gigabit Ethernet Ports: 48 x 10/100/1000Base-T RJ-45 PoE+
Uplink/Expansion Ports: 4 x 40GbE QSFP+
Layer Support: Layer 2 / Layer 3
Switching Capacity: 1.28 Tbps
Forwarding Rate: 952 Mpps
MAC Address Table: 128,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Dynamic Routing: RIP, OSPF, BGP, IS-IS Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p, DiffServ
Security: IEEE 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP v1/v2c/v3
