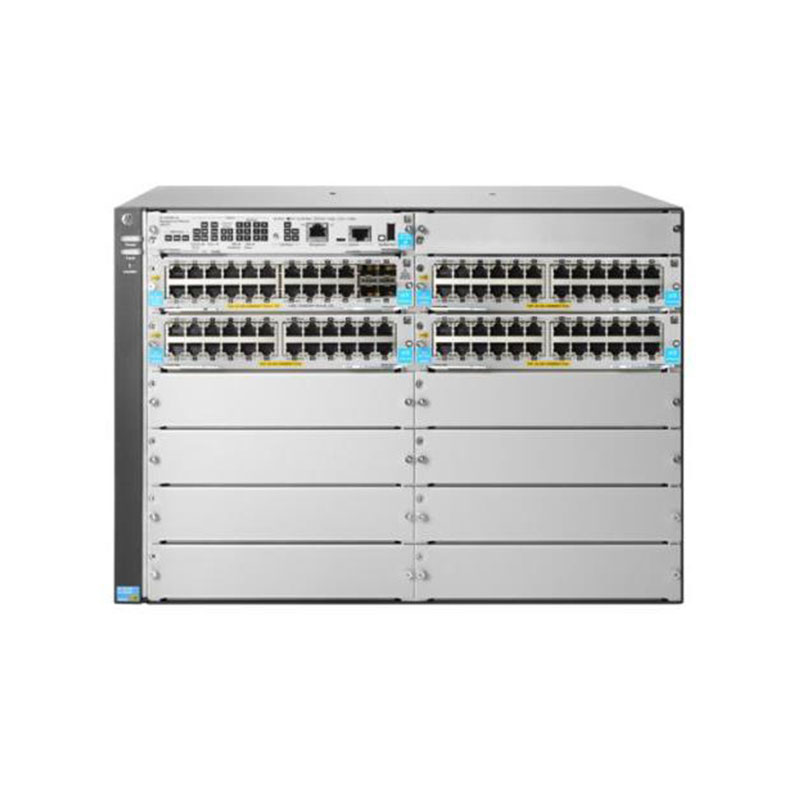

JL001-61001 HPE 7U Rack-mountable Layer 3 Managed Network Switch Chassis
JL001-61001 Overview
The HPE JL001-61001 is a high-capacity modular switch chassis designed for enterprise and data center networks that require scalability, flexibility, and advanced management features. With 12 expansion slots, it supports a wide range of interface modules for copper, fiber, and high-speed uplinks. Built in a 7U rack-mountable form factor, this chassis provides the foundation for Layer 3 managed networking, delivering robust performance, redundancy, and investment protection for mission-critical environments.
JL001-61001 Technical Specifications
HPE 12 x Expansion Slots 7U Rack-mountable Layer 3 Managed Network Switch Chassis
Manufacturer: HPE
Manufacture Part Number: JL001-61001
Product Type: Layer 3 Switch
Interface/Ports
Quantity of Fixed Ports/Expansion Slots: 104
Quantity of Network Ports: 92
Quantity of Expansion Slots: 12
Expansion Slots Details: SFP+
Quantity of SFP+ Slots: 4
Fixed Ports/Expansion Slot Details
92 x Gigabit Ethernet Network,PoE+
4 x 10 Gigabit Ethernet SFP+
8 x Expansion Slot
Media & Performance
Ethernet Standard: Gigabit Ethernet,10 Gigabit Ethernet
Media Standard: Twisted Pair,Optical Fiber
Technology Standard: 10/100/1000Base-T,10GBase-X,10/100/1000Base-TX
Supported Layer Standard: layer 3
Manageable: Yes
Physical Characteristics
Height: 12.1 Inches
Width: 17.5 Inches
Depth: 7.75 Inches
Form Factor: Rack-mountable
Supported Rack: 7U
Miscellaneous
Compliance Standards: RoHS,WEEE
Assembly Required: Yes
Eco Friendly: Yes
Source of Power: Power Supply
