JL070A HP Aruba 2530 Series 1U Rack-Mountable Fast Ethernet Network Switch
JL070A Technical Specifications

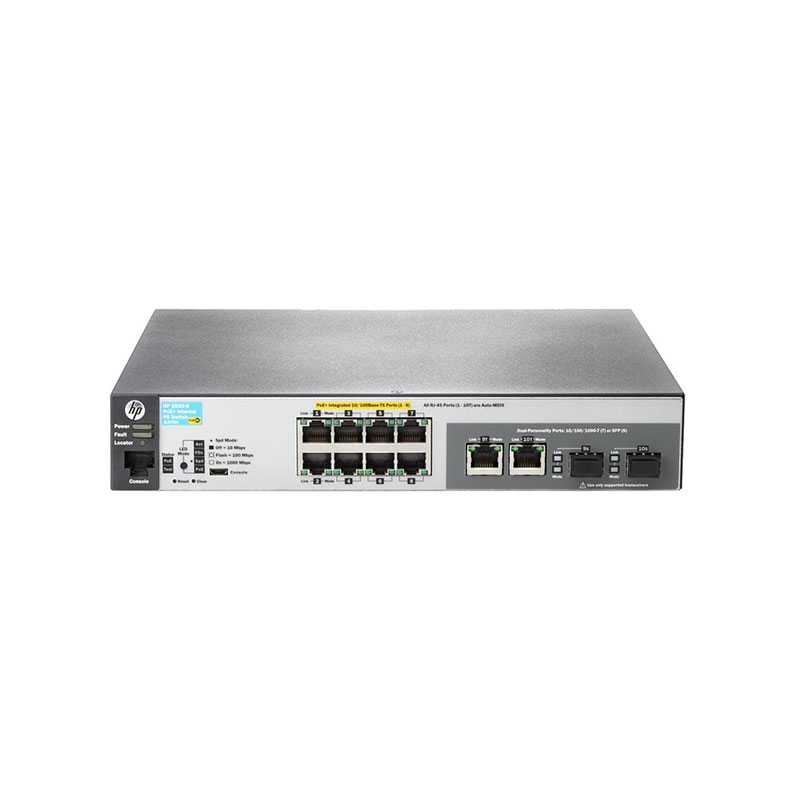

The HP Aruba JL070A is an 8-port Layer 2 managed Fast Ethernet switch designed for reliable, secure, and energy-efficient networking in branch offices, SMBs, and edge deployments. It features 8 x RJ-45 PoE+ 10/100Base-TX ports and 2 x dual-personality RJ-45/SFP ports, providing flexibility for both copper and fiber connections. With PoE+ capability, it powers devices such as IP phones, access points, and cameras directly through the Ethernet ports, reducing cabling complexity. The Aruba 2530 Series ensures simplified management, enhanced security, and cost-effective scalability in a 1U rack-mountable form factor.
JL070A Technical Specifications
HP Aruba 2530 Series 8 x RJ-45 Ports PoE+ 10/100Base-TX + 2 x Ports Dual-Personality RJ-45/SFP Layer 2 Managed 1U Rack-Mountable Fast Ethernet Network Switch
Product Type: Ethernet Switch
Interface/Ports
USB Port: Yes
Console Management Port: Yes
Quantity of Fixed Ports/Expansion Slots: 10
Quantity of Network Ports: 8
Uplink Port: Yes
Stacking Port: Yes
Quantity of Expansion Slots: 2
Expansion Slots Details: SFP
Quantity of SFP Slots: 2
Fixed Ports/Expansion Slot Details
8 x Fast Ethernet Network,PoE+
2 x Gigabit Ethernet SFP
Media & Performance
Ethernet Standard: Fast Ethernet,Gigabit Ethernet
Media Standard: Twisted Pair,Optical Fiber
Technology Standard: 10/100Base-TX,1000Base-X
Shared Status SFP/SFP+ Slots: Yes
Supported Layer Standard: 2
Manageable: Yes
Physical Characteristics
Height: 1.75 Inches
Width: 10 Inches
Depth: 9.68 Inches
Form Factor: Rack-mountable,Wall Mountable
Supported Rack: 1U
Miscellaneous
Compliance Standards: RoHS,WEEE
Assembly Required: Yes
Eco Friendly: Yes
Source of Power: Power Supply
